ASUS Pro WS WRX90E-SAGE SE Workstation Motherboard | AMD sTR5 Socket, WRX90 Chipset, 8x DDR5 DIMM (2048GB Max), 7x PCIe 5.0 x16 Slots, 4x M.2 NVMe Slots – 90MB1FW0-M0EAY0

Product Description

The ASUS Pro WS WRX90E-SAGE SE is a high-end EEB workstation motherboard engineered for creators, engineers, AI developers, and professionals who demand maximum performance. Powered by the AMD sTR5 socket and WRX90 chipset, it supports the latest AMD Ryzen™ Threadripper™ PRO 7000 WX-Series processors, enabling up to 96 cores of extreme productivity.

Built for heavy workloads and multi-GPU environments, the board features seven PCIe 5.0 x16 slots, four PCIe 5.0 M.2 slots, dual 10Gb LAN, and advanced cooling—making it ideal for rendering, simulation, 3D design, machine learning, and enterprise applications.

With its robust 32+3+3+3 power-stage design, server-grade components, and IPMI remote management, the WRX90E-SAGE SE delivers uncompromising stability, efficient heat dissipation, and full remote control for business and data-center use. Support for up to 2TB of DDR5 ECC R-DIMM memory ensures seamless performance for memory-intensive workflows.

This workstation motherboard is engineered for reliability, validated for 24/7 operation, and optimized for professionals who need power, scalability, and long-term dependability.

Key Features

• AMD sTR5 Socket for Extreme Performance
  Supports up to 96-core AMD Ryzen™ Threadripper™ PRO 7000 WX-Series CPUs for maximum processing power.

• High-Speed Expansion & Connectivity
  Equipped with 7× PCIe 5.0 x16 slots, 4× PCIe 5.0 M.2, dual 10Gb LAN, USB4® 40Gbps Type-C ports, and SlimSAS NVMe support.

• Massive Memory Capacity
  Supports up to 2TB DDR5 ECC R-DIMM (1DPC), enabling extreme multitasking and memory-heavy applications.

• Overclocking Ready
  Optimized for CPU and memory overclocking while maintaining top-tier stability.

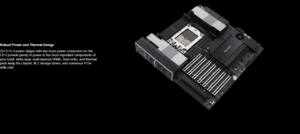

• Advanced Power & Cooling Design
  Features 32+3+3+3 power stages, dual 8-pin CPU connectors, large VRM heatsinks, active cooling fans, and M.2 thermal pads.

• PCIe Q-Release Slim
  Lets you remove GPUs easily by lifting them directly—no latch pressing required.

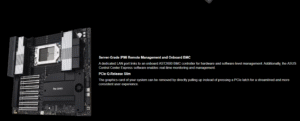

• Server-Grade IPMI Management
  Includes onboard AST2600 BMC with dedicated LAN for real-time monitoring, remote access, and full system management via ASUS Control Center Express.

• Enterprise-Level Reliability
  Validated for full compatibility, stability, and 24/7 continuous operation with a comprehensive QVL list.

Lay a solid foundation for your high-performance workstation with the ASUS Pro WS WRX90E-SAGE SE EEB Motherboard. Designed for professional creators, engineers, and power users, this board supports AMD Ryzen™ Threadripper™ PRO 7000 WX-Series processors through the advanced WRX90 chipset, delivering unmatched multi-core performance.

With eight DDR5 DIMM slots supporting up to 2TB of quad-channel ECC memory, the WRX90E-SAGE SE ensures exceptional bandwidth and stability for intensive workloads such as 3D rendering, simulation, AI development, and heavy multitasking. Four high-speed PCIe 5.0 M.2 slots provide ultra-fast NVMe storage expansion, enabling rapid data access for large projects.

Built for professional environments, the motherboard offers broad OS compatibility, supporting both Windows 10 (64-bit) and Windows 11, ensuring seamless integration into modern workstation setups.
