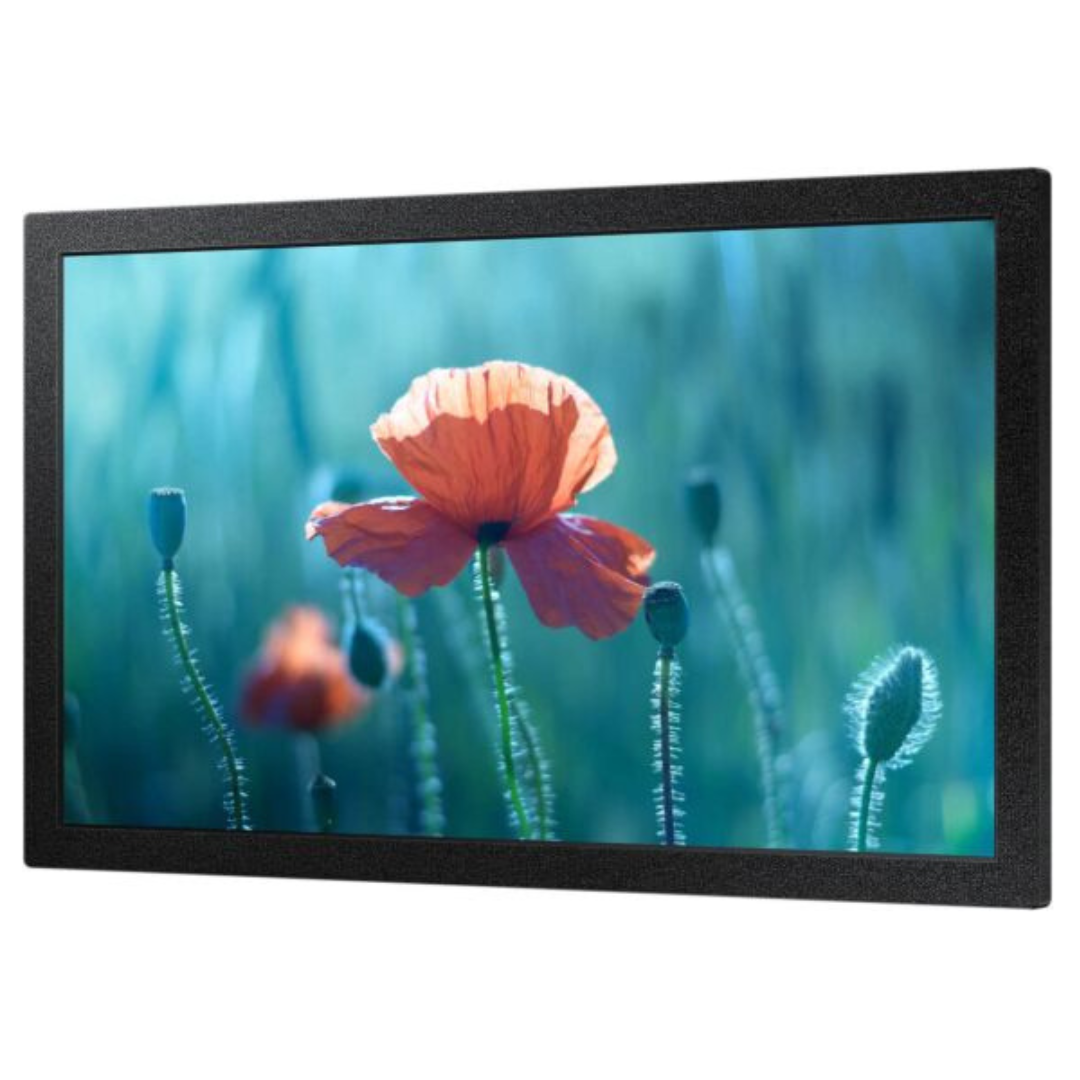

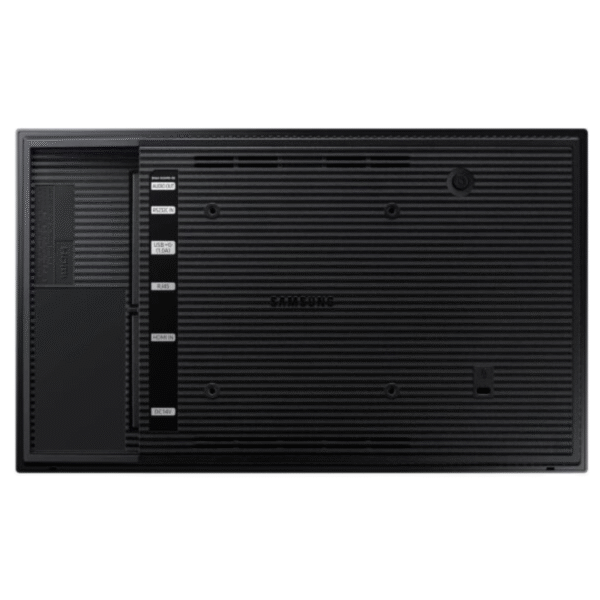

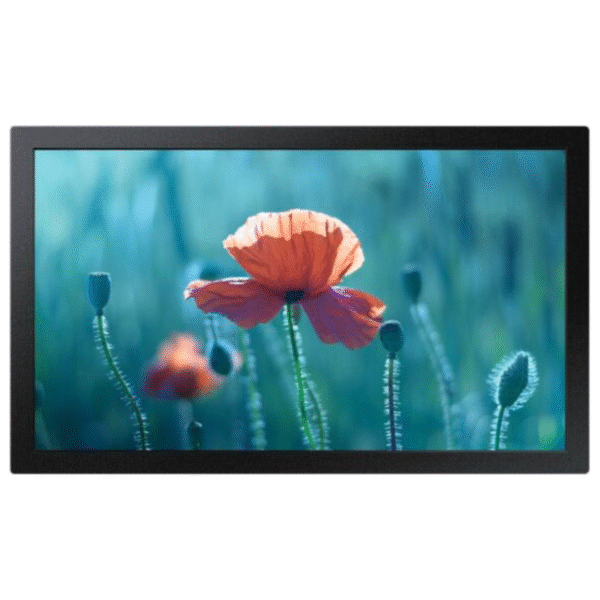

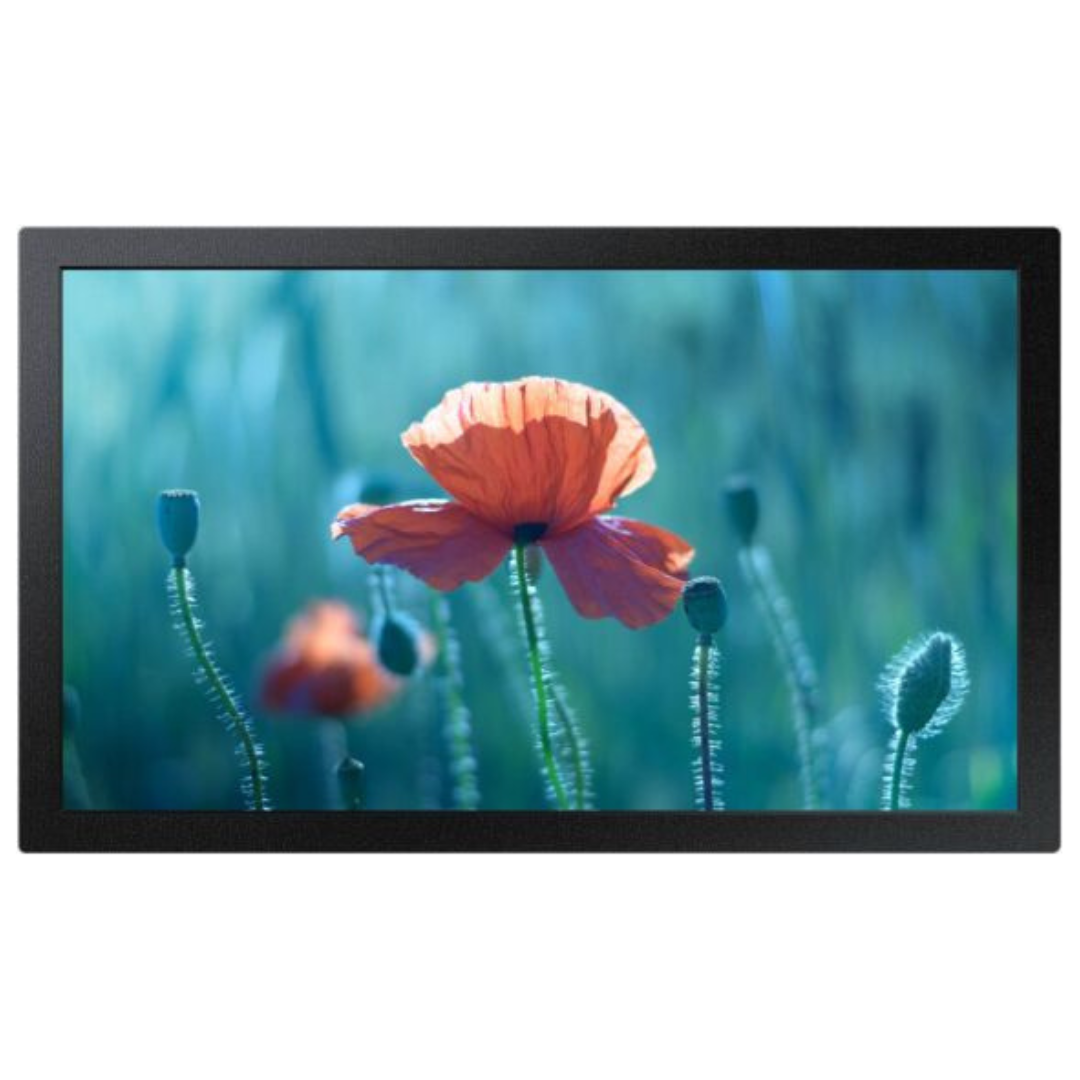

Samsung 13″ QBR Series Smart Signage Display (LH13QBRMBGCXUE)

QBR-M

Enhanced communication in a compact display

Samsung’s QB13R-M enables personalized and more impactful communication through its compact and versatile design. An all-in-one solution designed for professional use, the QB13R-M improves the operational efficiency of content, while also ensuring reliable performance for any business use.

• Display

  • Diagonal Size: 13″

  • Panel Type: ADS

  • Resolution: 1,920 × 1,080

  • Pixel Pitch (HxV): 0.153 × 0.153 mm

  • Brightness (Typical): 500 nit

  • Contrast Ratio: 800:1

  • Viewing Angle (H/V): 178° / 178°

  • Response Time: 30 ms

  • Color Gamut: 45%

  • Glass Haze: 25%

  • H-Scanning Frequency: 30 ~ 81 kHz

  • Maximum Pixel Frequency: 594 MHz

  • V-Scanning Frequency: 48 ~ 75 Hz

  • Contrast Ratio (Dynamic): 10,000:1

  • Operation Time Support: 16/7

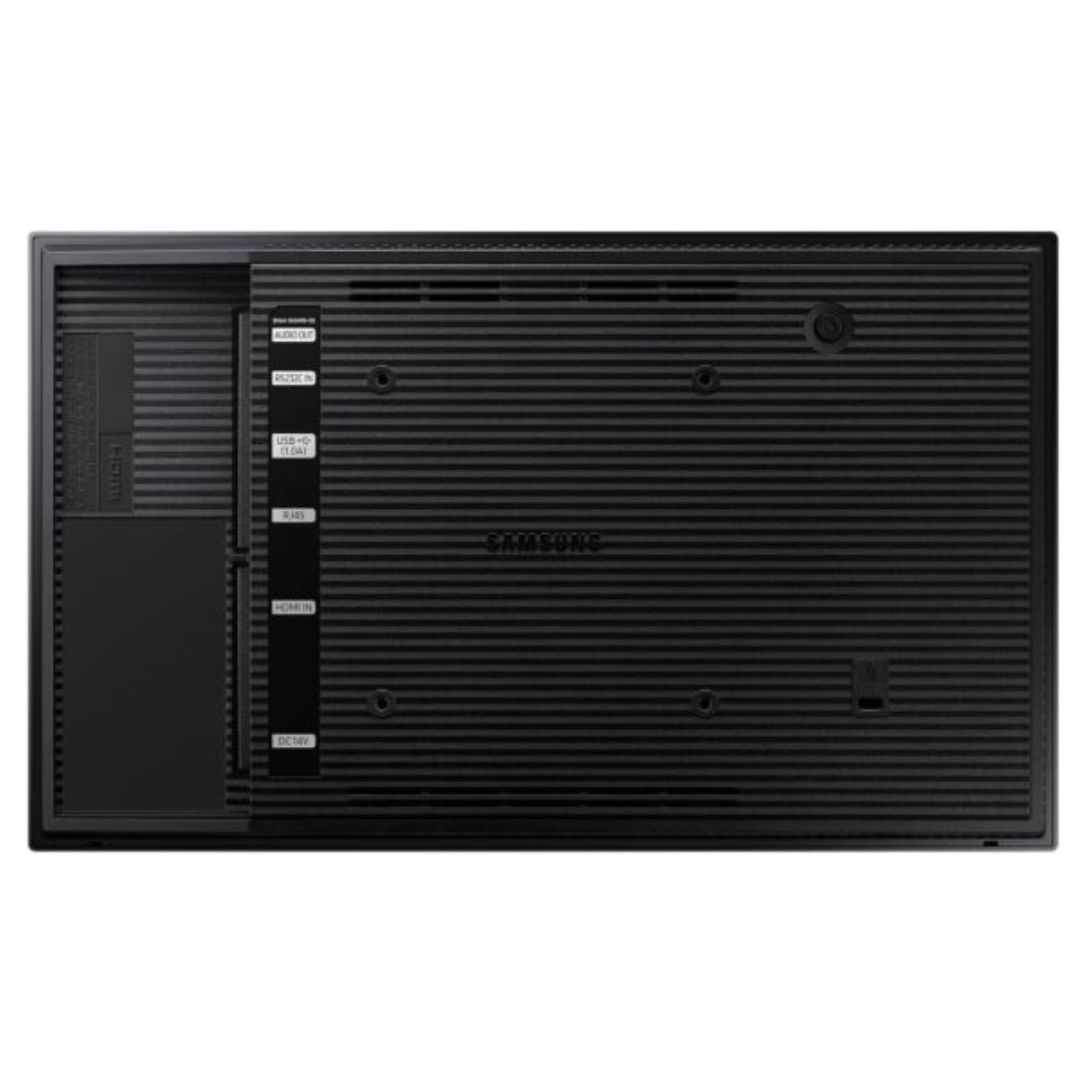

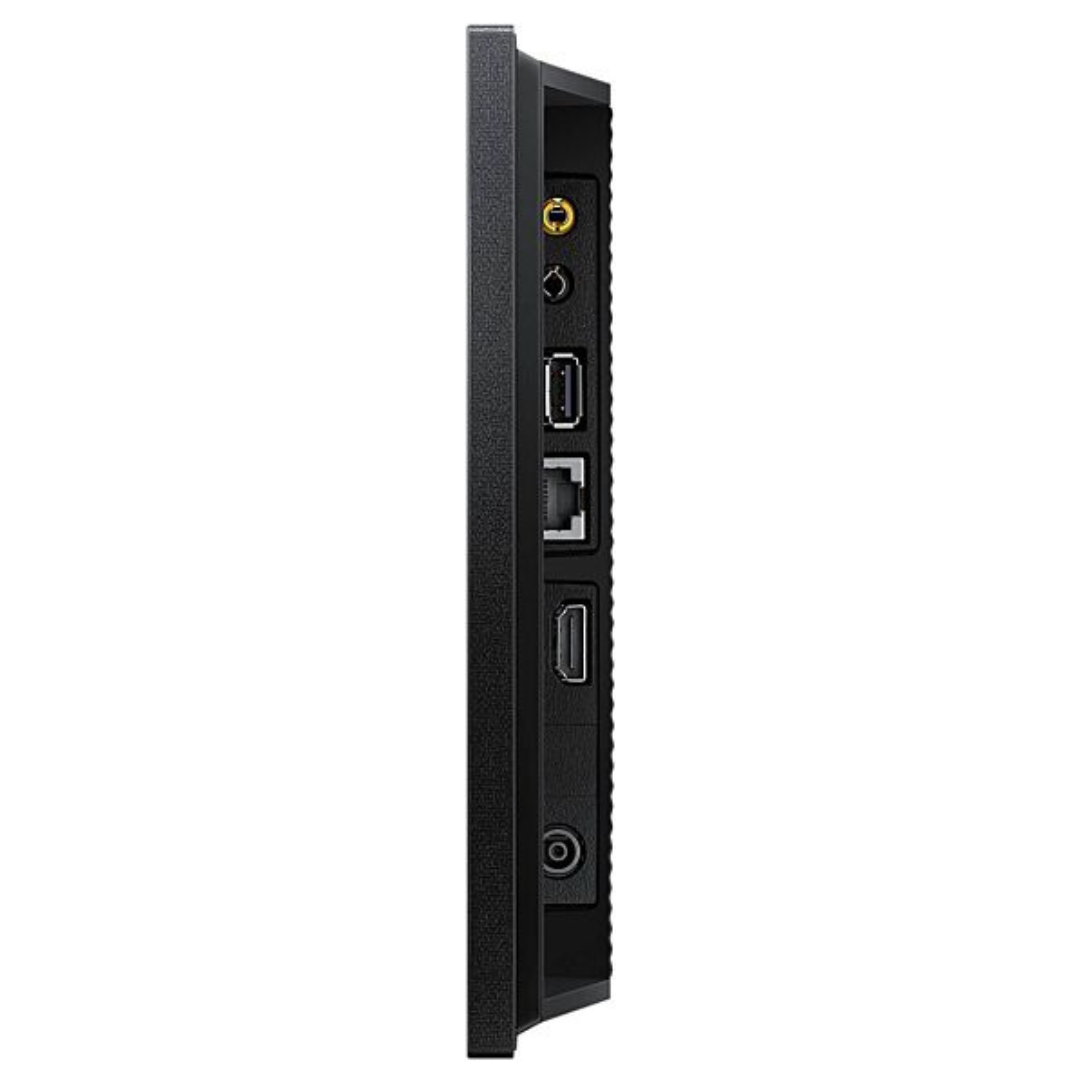

• Connectivity

  • HDMI In: 1

  • DP In: No

  • Version of HDMI: 1.4

  • Version of DP: No

  • Version of HDCP: 2.2

  • USB: 1

  • IR In: No

  • Audio In: No

  • Audio Out: Stereo Mini Jack

  • RS232 In: Yes

  • RJ45 In: Yes

  • WiFi: Yes

• Power

  • Power Supply: AC100-240 V 50/60 Hz

  • Power Consumption (On Mode): 27.5 W

  • Power Consumption (Sleep Mode): 0.5 W

• Dimension

  • Set Dimension (WxHxD): 322 × 193.5 × 28.2 mm

  • Package Dimension (WxHxD): 376 × 132 × 248 mm

• Weight

  • Set Weight: 0.9 kg

  • Package Weight: 1.7 kg

• Operation Conditions

  • Temperature: 0°C ~ 40°C

  • Humidity: 10 ~ 80%, non-condensing

• Mechanical Specification

  • VESA Mount: 100 × 100 mm

  • Bezel Width: 12.2 mm

  • Frame Material: Non-Glossy

• Optional Feature

  • Mount: No

  • Stand: Inbox (Simple Stand) (2ea)

• SoC

  • OS Version: Tizen 4.0

  • Flash Memory Size: 8 GB

• Certification and Compliance

  • EMC: Class B

  • Safety: 60950-1, 62368-1
