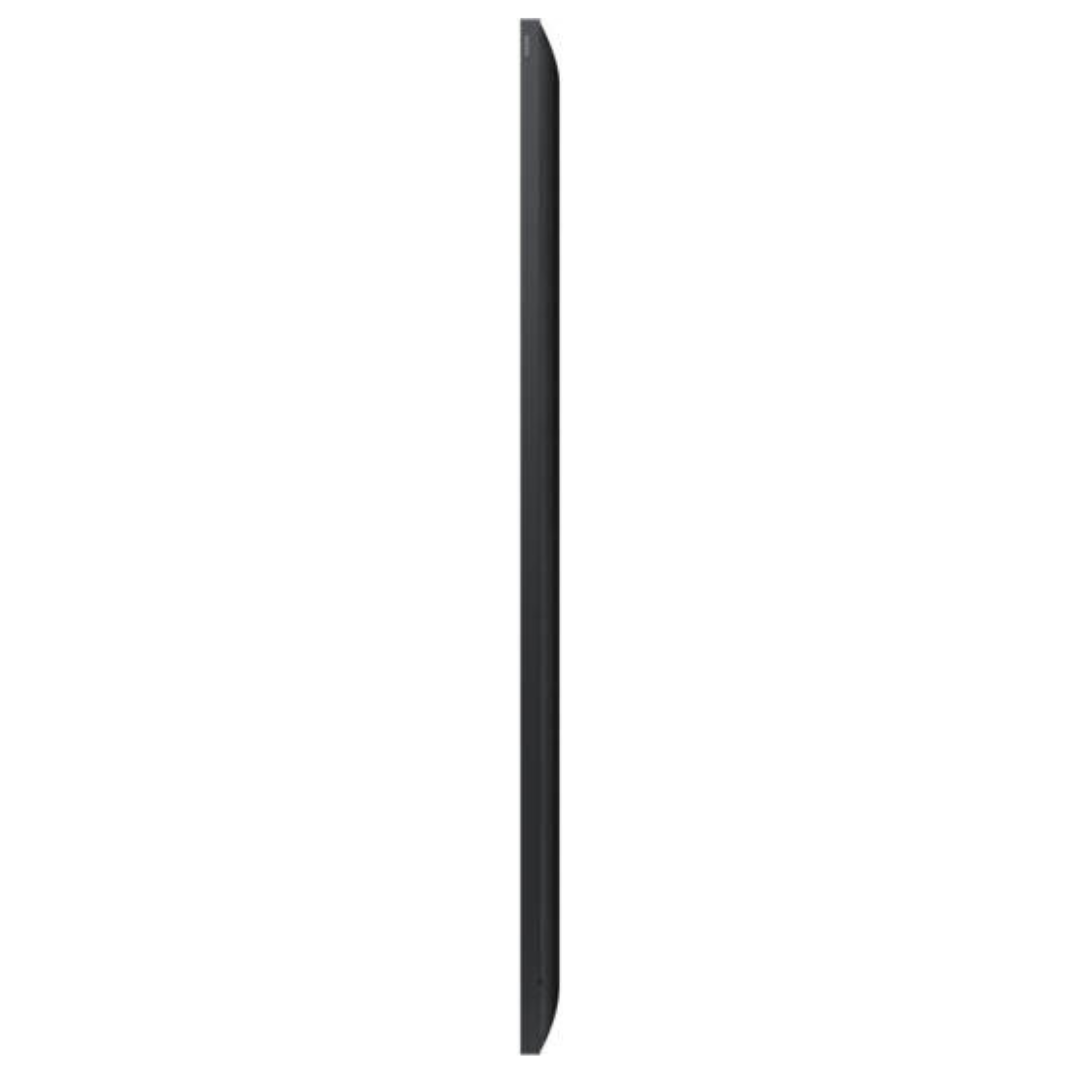

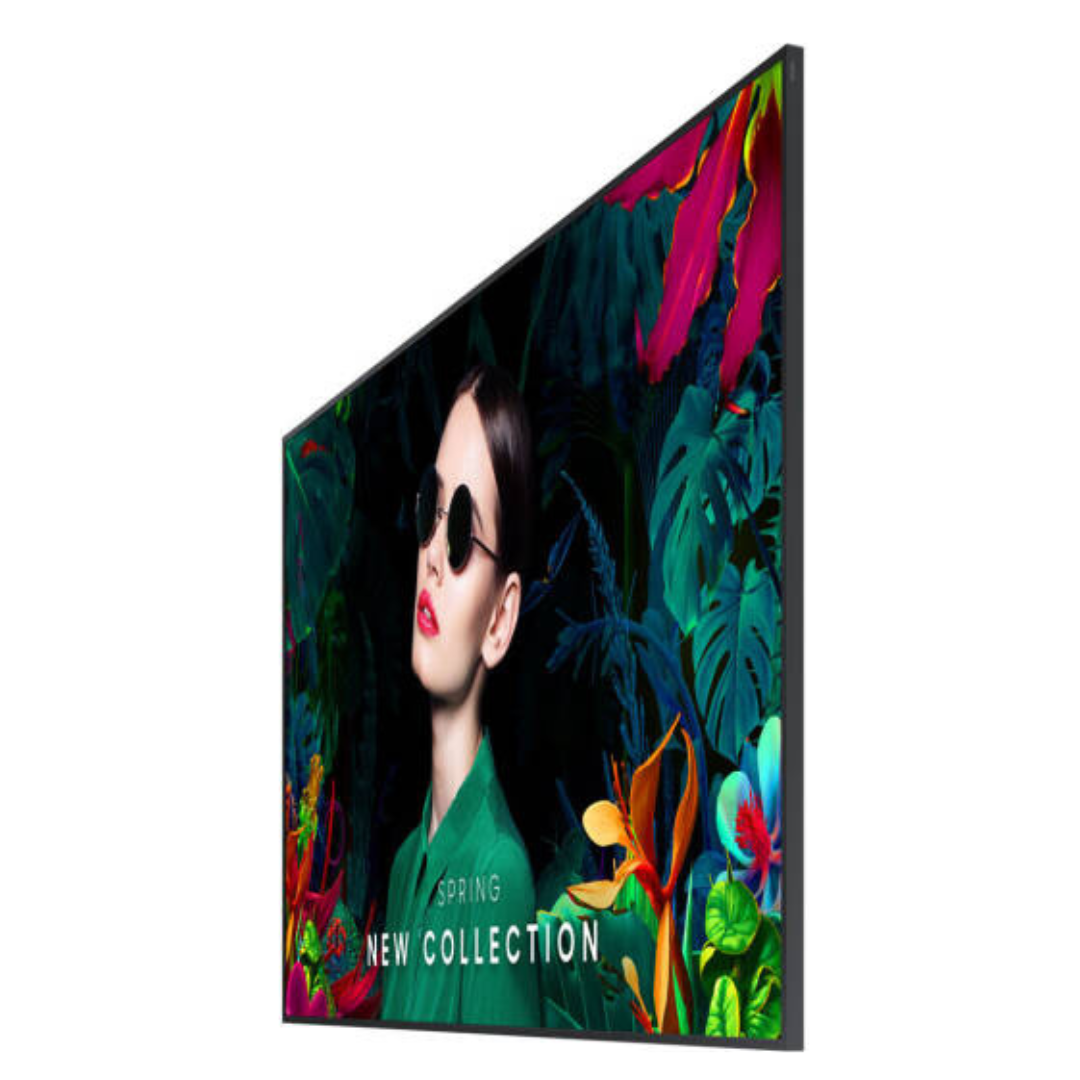

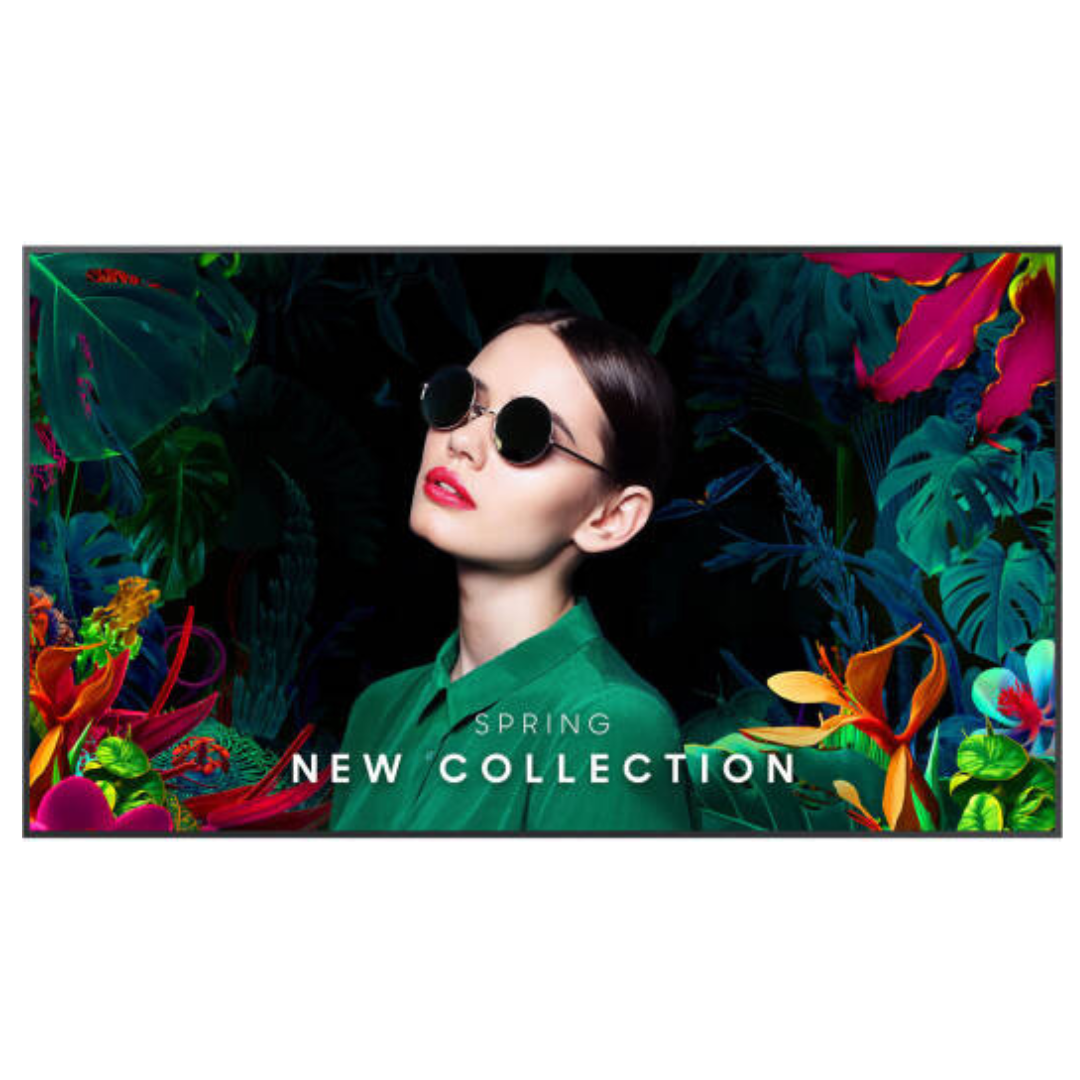

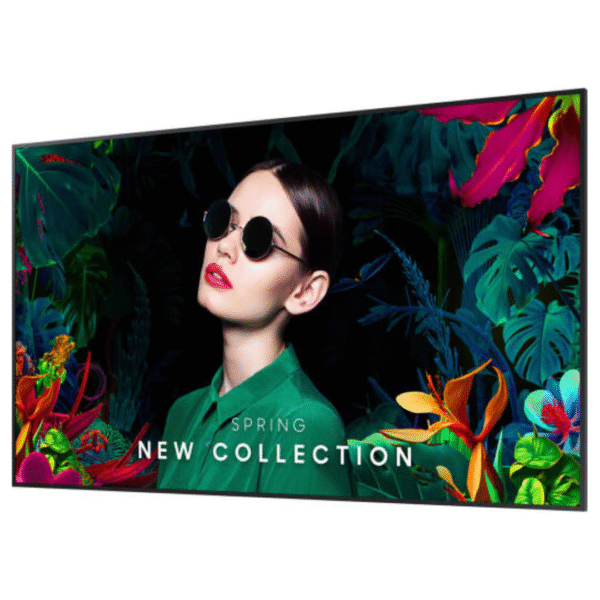

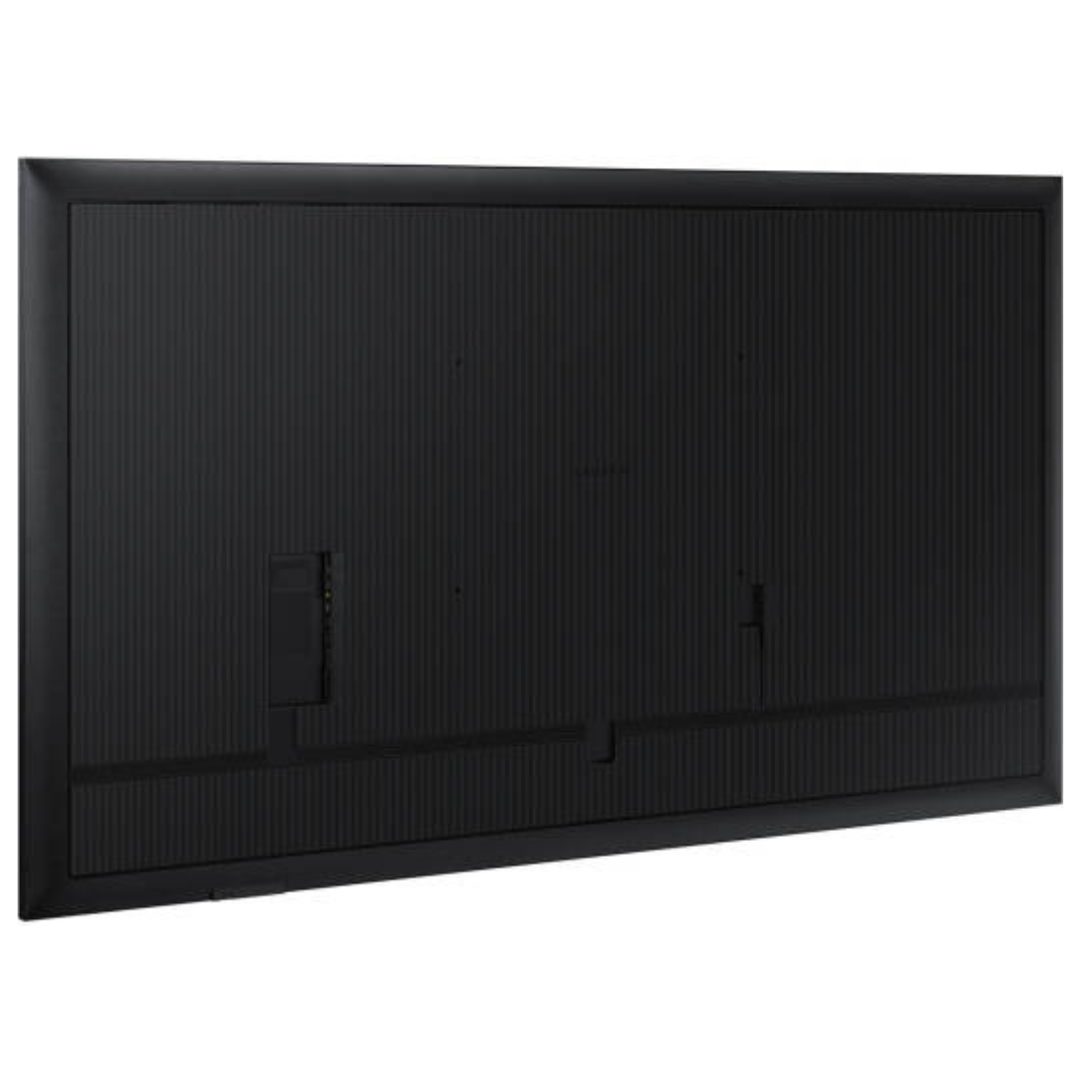

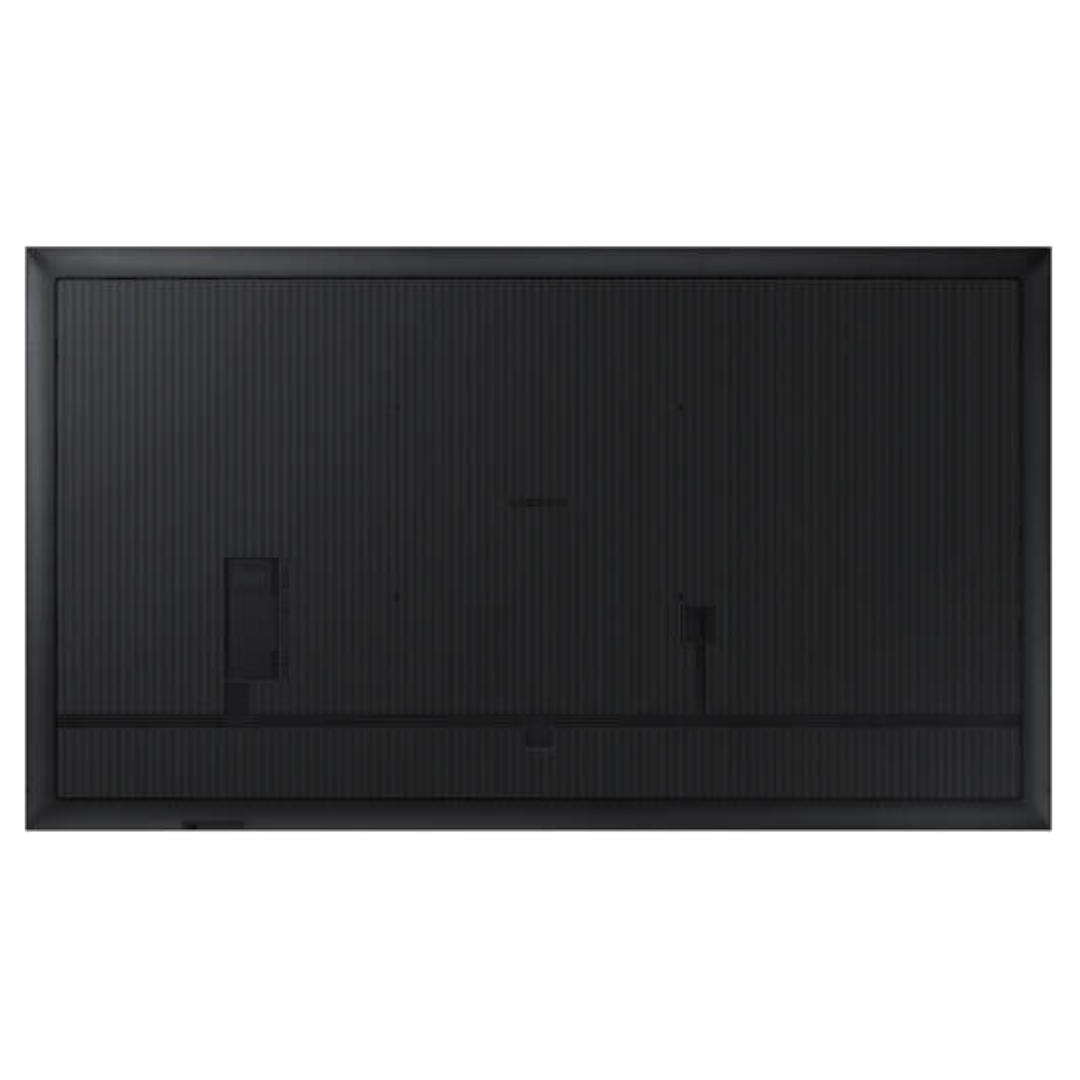

Samsung Crystal Signage QMC, 98″ 4K UHD VA Display,LH98QMCEBGCXUE

The Samsung Crystal Signage QMC 98″ (LH98QMCEBGCXUE) is a professional-grade, ultra-large digital signage display designed for commercial environments. It offers a 4K (3840 × 2160) resolution on a 98‑inch VA panel, delivering sharp, high‑definition visuals that are well-suited for retail spaces, conference rooms, control rooms, and public areas.

Display

• Size : 98″

• Panel : VA

• Resolution: 3,840 × 2,160 (4K UHD)

• Pixel Pitch: 0.562 × 0.562 mm

• Brightness (Typical): 500 nits

• Contrast Ratio: 5,500:1 (typical), Mega (dynamic)

• Viewing Angle (H/V): 178° / 178°

• Response Time: 8 ms

• Color Gamut: 72% NTSC

• Glass Haze: 25%

• Frequency: Horizontal 30–81 kHz, Vertical 48–75 Hz, Max Pixel Frequency 594 MHz

• Operation Time: 24/7 continuous operation

Connectivity

• HDMI: 3 × v2.0

• DisplayPort: 1 × v1.2

• USB Ports: 2

• IR In: 1

• Audio Out: Stereo Mini Jack

• RS232 In/Out: Yes

• RJ45 In: Yes

• Wi-Fi: Yes

• Bluetooth: Yes

• HDCP Support: v2.2

Power

• Power Supply: AC 100–240 V, 50/60 Hz

• Power Consumption: 363 W (On), 0.5 W (Sleep)

Dimensions & Weight

• Set Dimensions (WxHxD): 2,193.2 × 1,248.8 × 48.1 mm

• Package Dimensions (WxHxD): 2,370 × 1,395 × 230 mm

• Set Weight: 56.3 kg

• Package Weight: 77.2 kg

Operating Conditions

• Temperature: 0–40 °C

• Humidity: 10–80% (non-condensing)

Mechanical

• VESA Mount: 600 × 400 mm

• Bezel Width: 14.8 mm (even)

• Frame: Non-glossy metal, Color: Slate Black

Optional Mount

• WMN-8200SC

System on Chip (SoC)

• OS: Tizen 7.0

• Flash Memory: 16 GB
