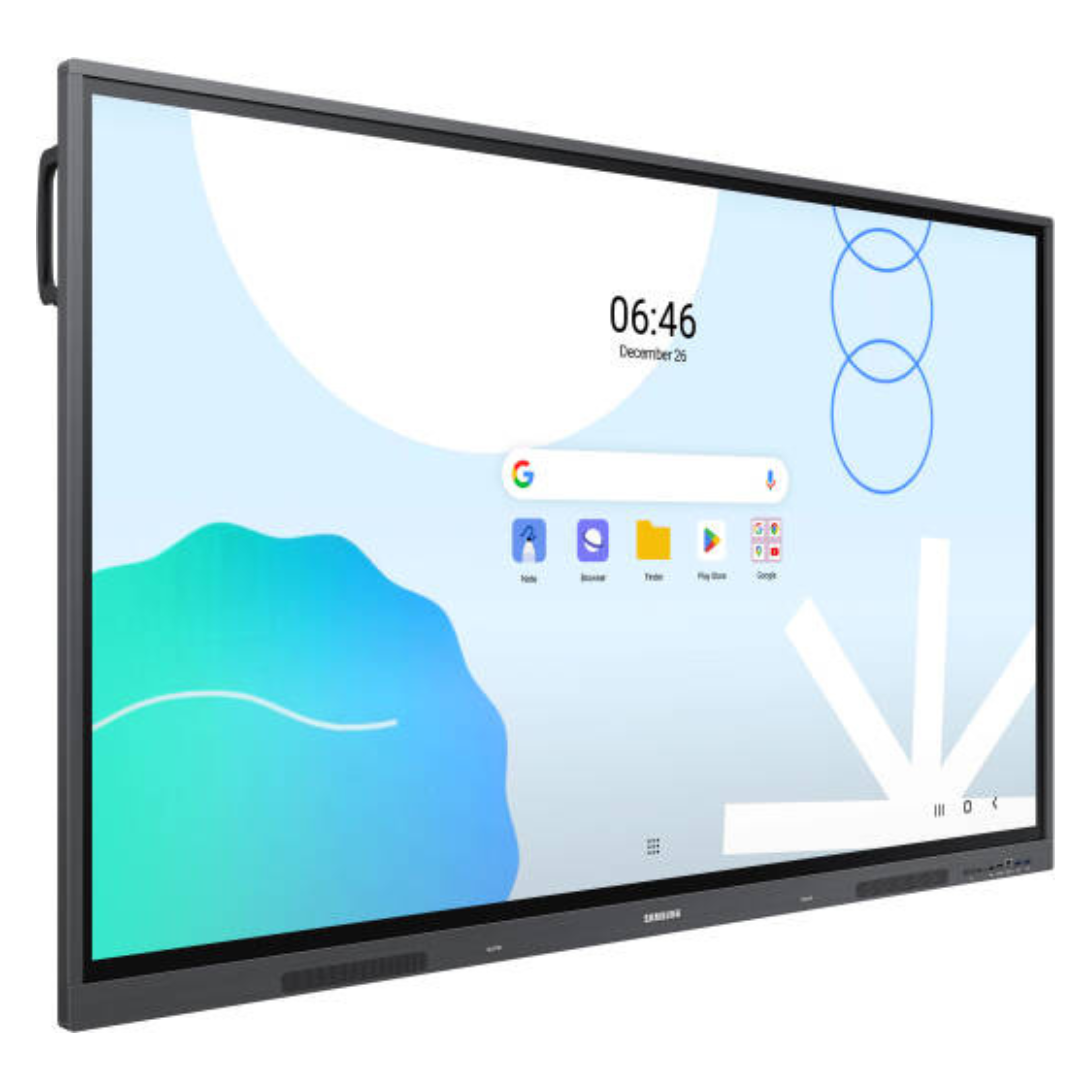

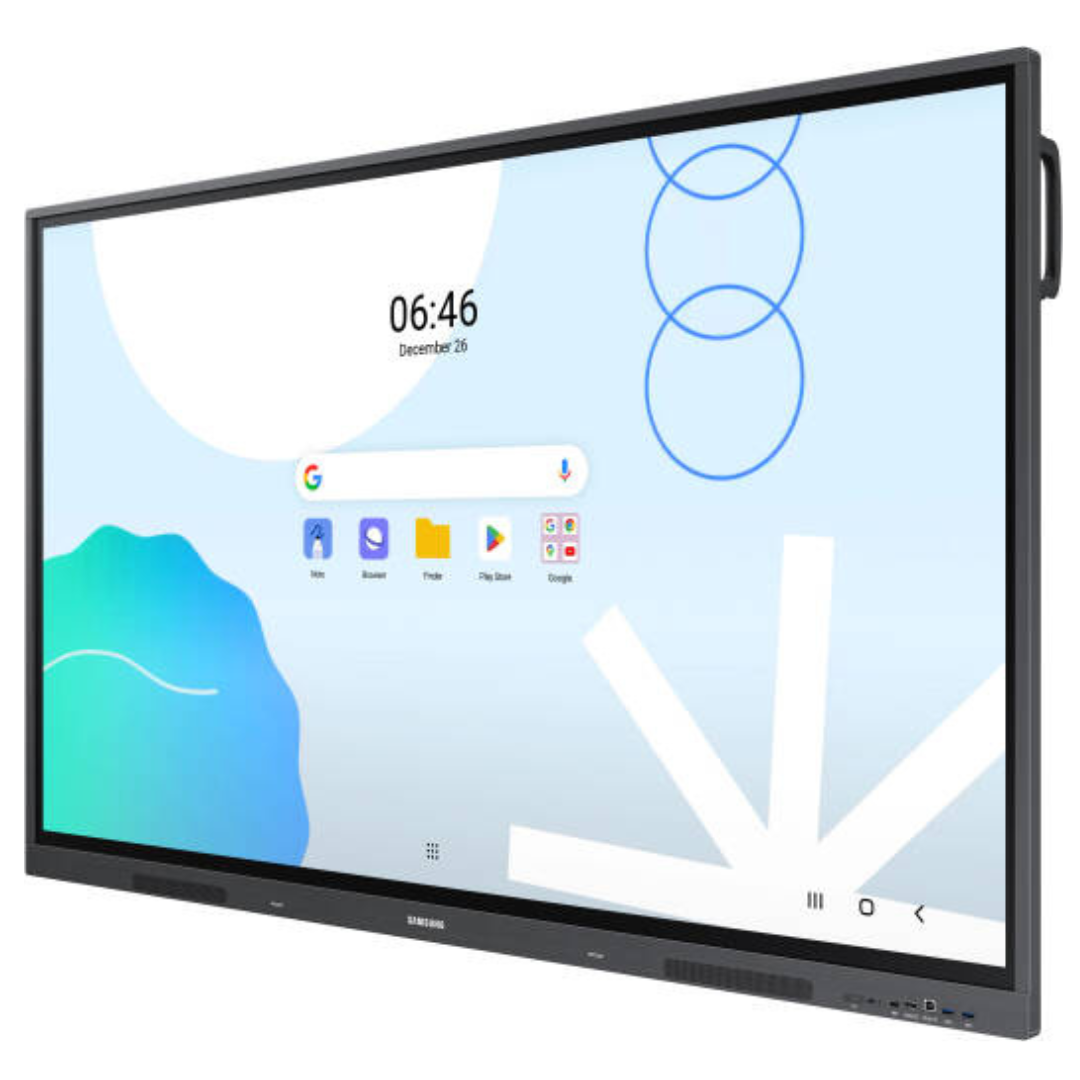

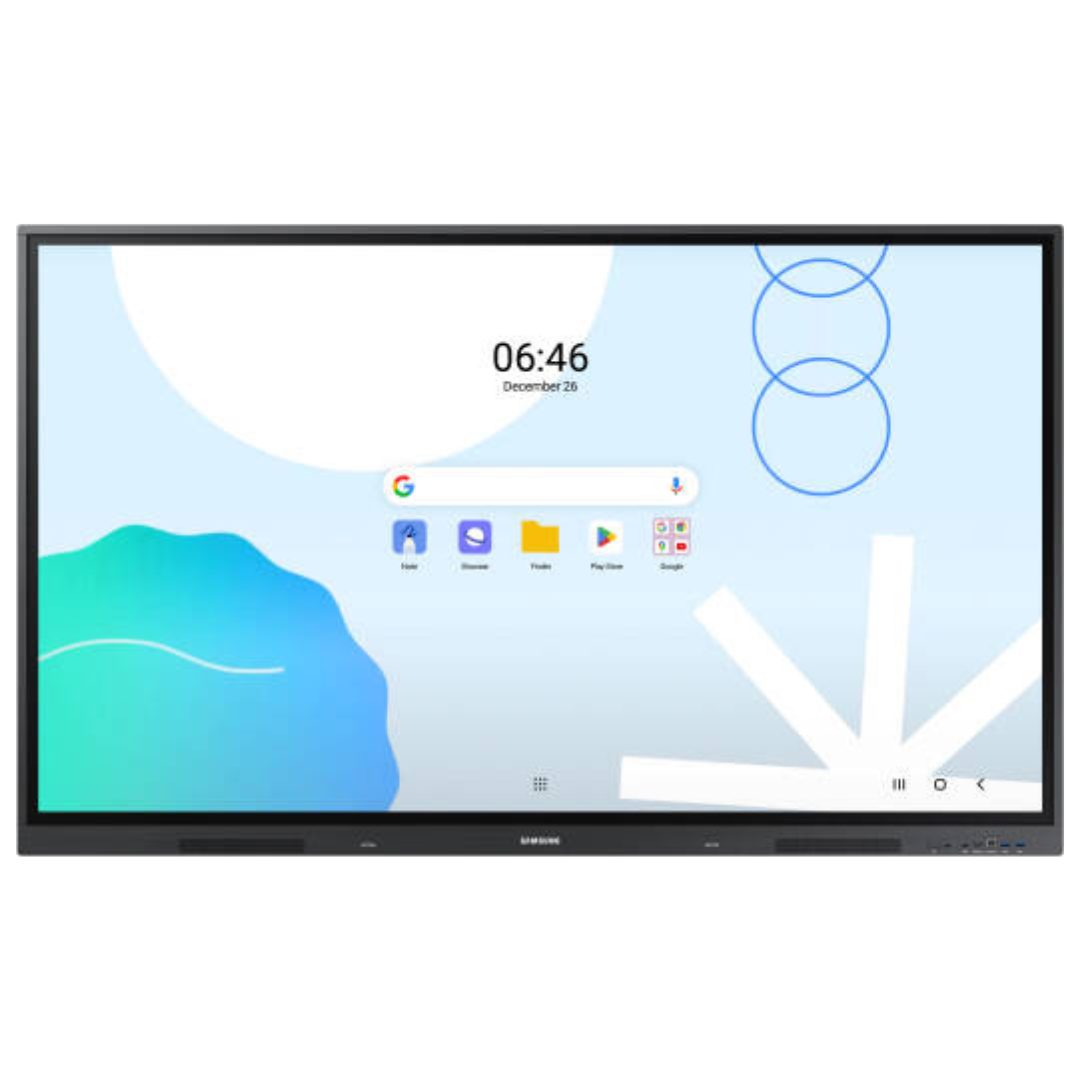

SAMSUNG WAD Android OS Interactive Display, 86″ 4K UHD IPS Touch Display | LH86WADWLGCXUE

he Samsung WAD 86″ Interactive Display combines cutting-edge 4K UHD visual clarity with responsive touch technology to transform collaboration and learning spaces. Its IPS panel delivers vibrant colors and wide viewing angles, while 8ms response time ensures smooth, lag-free interactions. Designed for seamless engagement, the display supports up to 40 touch points simultaneously and includes passive pen support for intuitive writing and drawing.

Powered by Android 13 with 64GB storage, this display provides a smooth and flexible user experience, supporting wireless connectivity via Wi-Fi and Bluetooth. Multiple input options, including HDMI and USB, along with an OPS slot, make integration with PCs and other devices effortless. Built-in stereo speakers and low-glare, eye-comfort features enhance usability for classrooms, meeting rooms, or collaborative workspaces.

With a sleek Space Gray bezel, robust build, and advanced durability features, the Samsung WAD display is ideal for modern work and learning environments that demand interactive, high-performance visual solutions.

Display

• Diagonal Size: 86″

• Panel Type: IPS

• Resolution: 3,840 x 2,160

• Pixel Pitch (HxV): 429.6 x 429.6 μm

• Brightness (Typical): 400 nit

• Contrast Ratio: 1,200:1

• Viewing Angle (H/V): 178° / 178°

• Response Time: 8 ms

• Colour Gamut: 72%

• Glass Haze: 25%

• H-Scanning Frequency: 135 kHz

• Maximum Pixel Frequency: 78 MHz

• V-Scanning Frequency: 60 Hz

• Operation Time Support: 12/7

Connectivity

• HDMI In: 3 (Version 2)

• HDCP Version: 2.1

• USB: 5 (1×2.0, 4×3.0)

• IR In: Yes

• Audio In: Stereo Mini Jack

• Audio Out: Stereo Mini Jack

• Video Out: Yes

• RS232 In/Out: Yes

• RJ45 In/Out: Yes

• WiFi: Yes

• Bluetooth: Yes

Power

• Power Supply: AC 100–240 V, 50/60 Hz

• Power Consumption (On Mode): 486 W

• Power Consumption (Sleep Mode): 0.5 W

Dimensions & Weight

• Set Dimensions (WxHxD): 1957 x 1160 x 99 mm

• Package Dimensions (WxHxD): 2110 x 1283 x 225 mm

• Set Weight with Stand: 56.5 kg

• Package Weight: 74.3 kg

Operation Conditions

• Temperature: 0°C–40°C

• Humidity: 10–90%

Mechanical Specifications

• VESA Mount: 800 x 600 mm

• Bezel Width: 16.4 mm (Top/Left/Right), 44.9 mm (Bottom)

• Bezel Color: Space Gray

• Frame Material: Non-Glossy

Optional Features

• Touch: Yes (IR technology)

SoC

• OS Version: Android 13

• Flash Memory Size: 64 GB

Certification and Compliance

• EMC: Part 15, Subpart B Class A, various standards

• Safety: IEC 62368-1, IEC 60950-1, various standards
