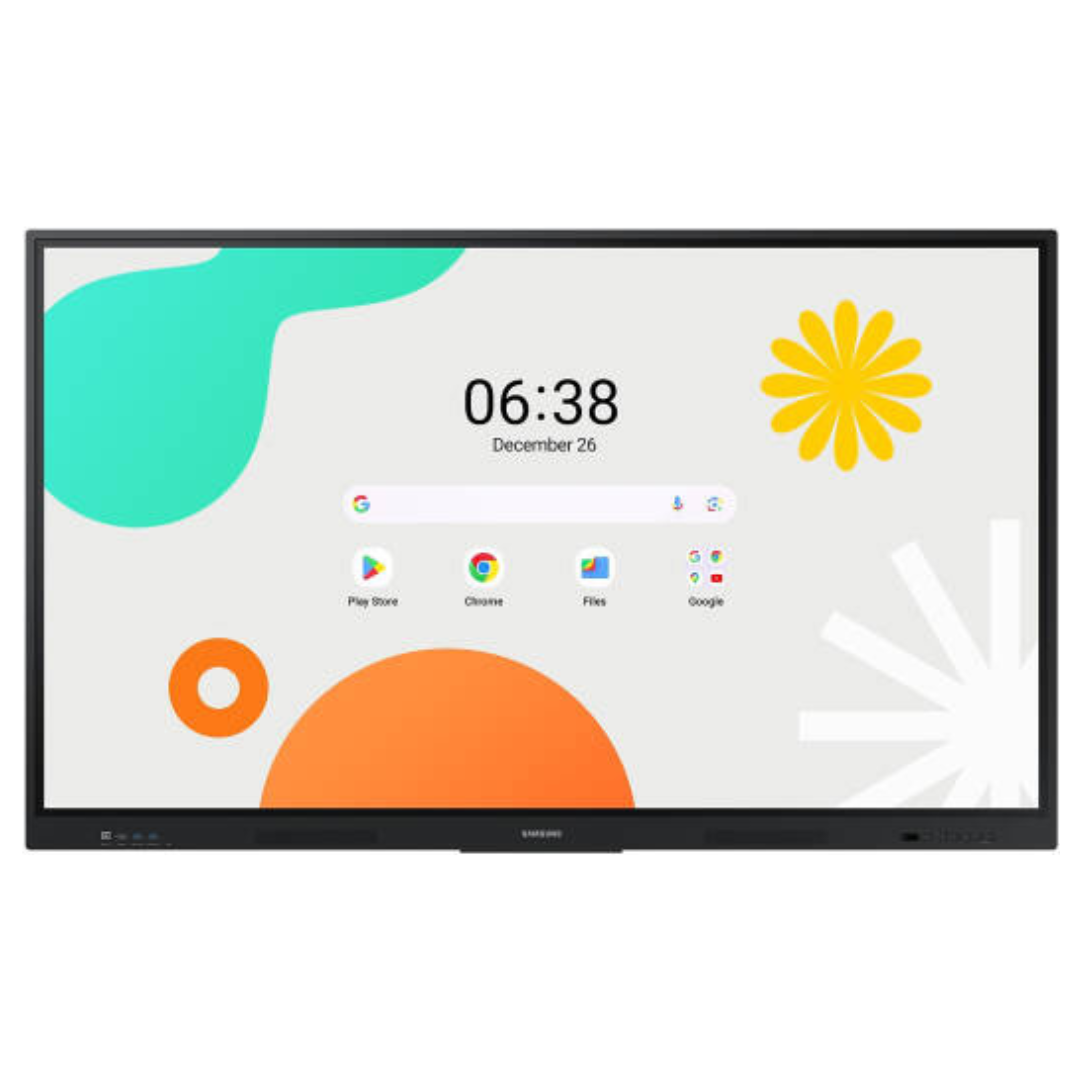

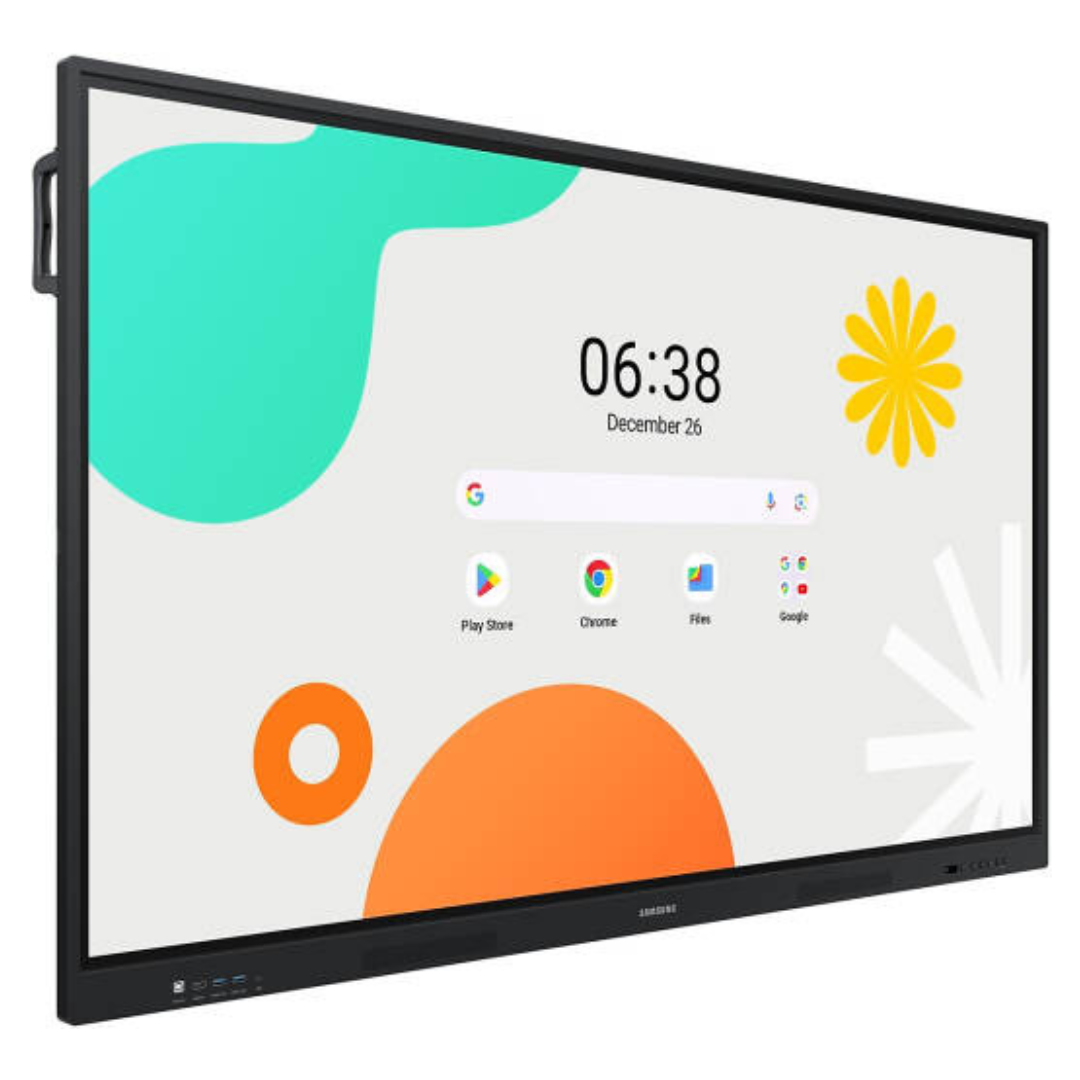

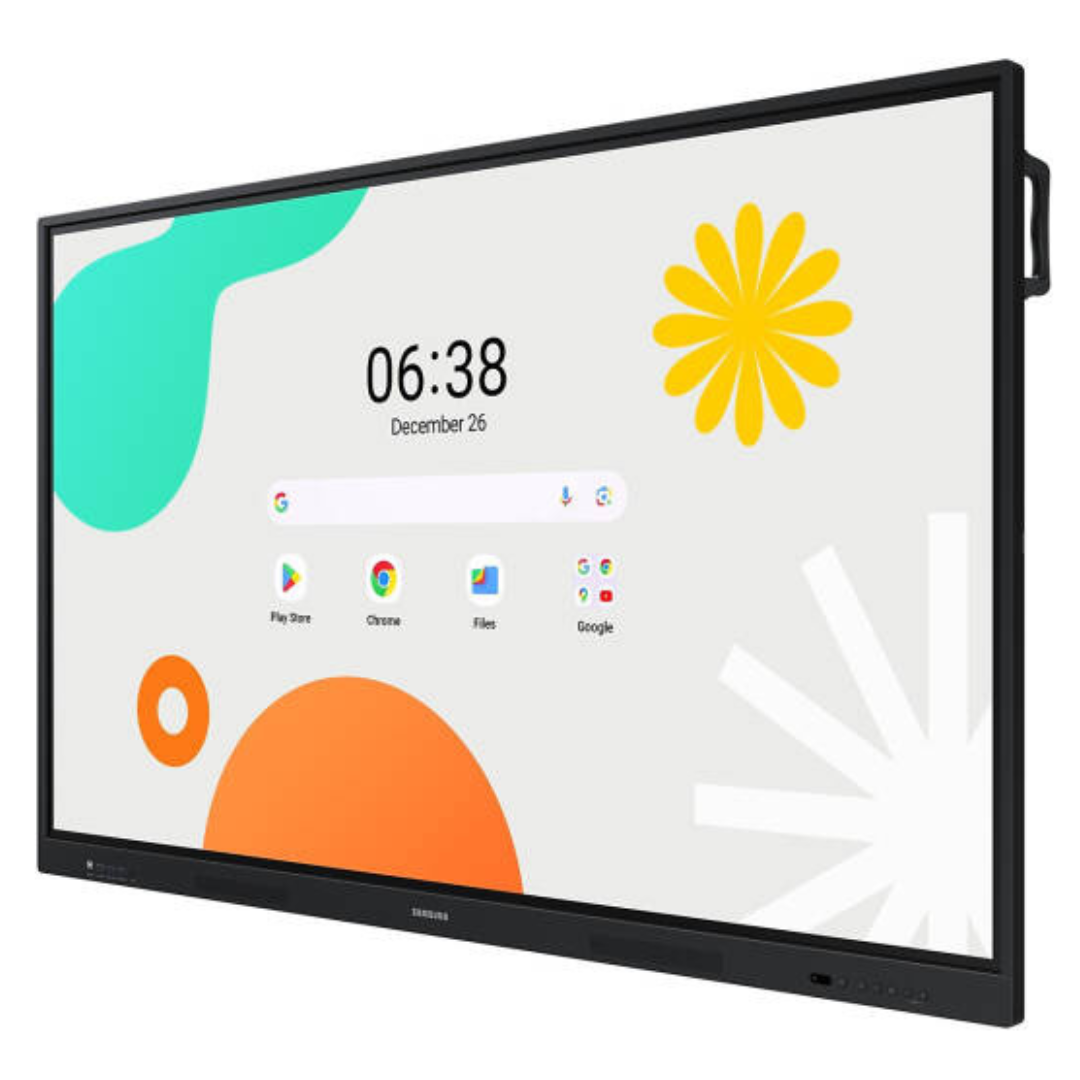

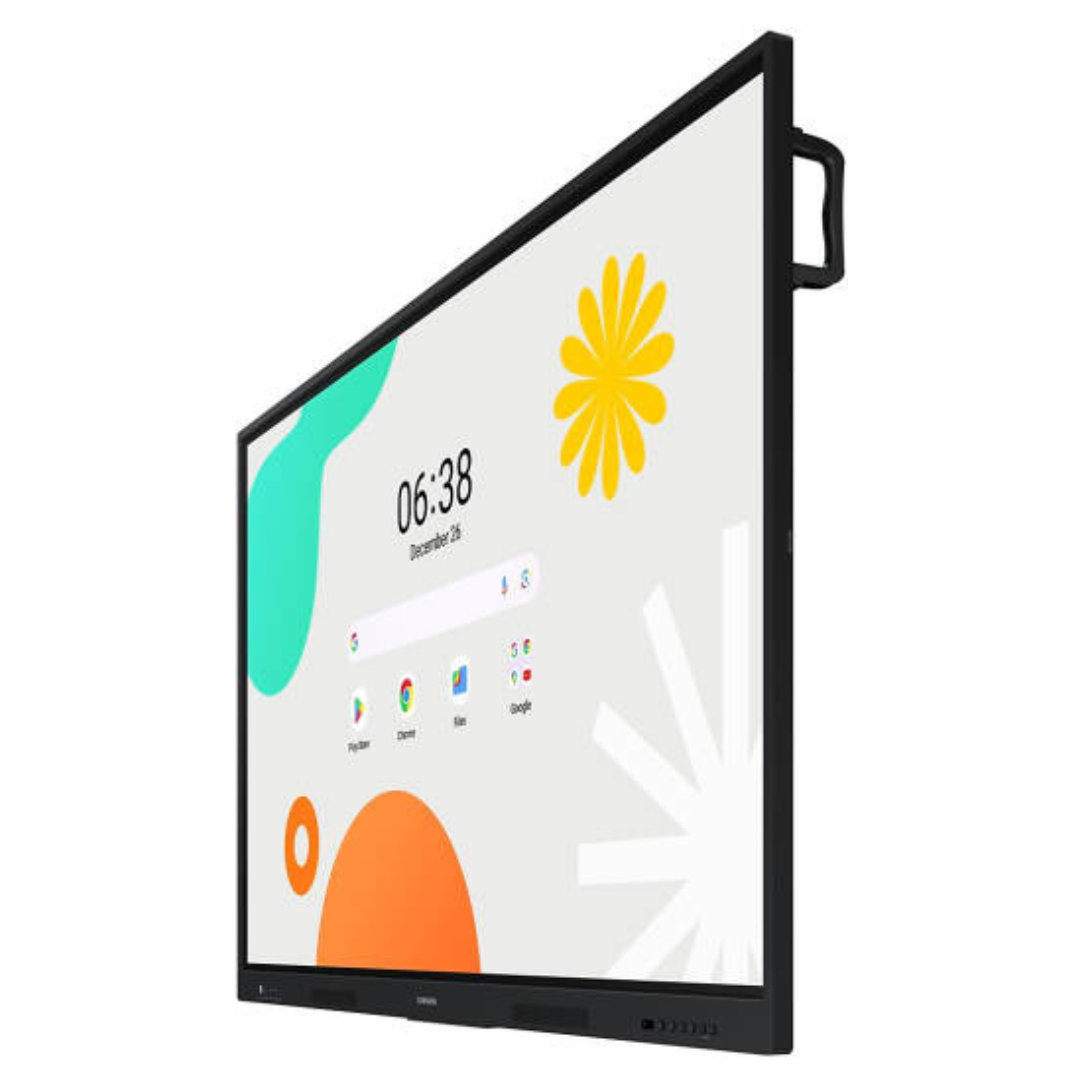

SAMSUNG WAF Series Interactive Display, 86″ 4K UHD Touch IR Display LH86WAFWLGCXUE

The Samsung WAF Series 86″ Interactive Display (LH86WAFWLGCXUE) is a 4K UHD touch screen designed for education and business collaboration. Running Android 14 with 64 GB storage, it supports 40-point IR touch, Split Note Mode for multiple users, and instant annotation. The display offers Wi-Fi & Bluetooth connectivity, multiple HDMI/USB ports, built-in speakers, and an OPS slot for PC integration. Its 400 nits brightness, 8 ms response time, and wide viewing angles ensure crisp, clear visuals for interactive learning or meetings.

Display

• Diagonal Size: 86″

• Panel Type: IPS

• Resolution: 3,840 × 2,160

• Pixel Pitch: 493.5 × 493.5 mm

• Brightness: 400 nits

• Contrast Ratio: 1,200:1

• Viewing Angle: 178° / 178°

• Response Time: 8 ms

• Color Gamut: 72%

• Glass Haze: 25%

• H-Scanning Frequency: 135 kHz

• Maximum Pixel Frequency: 78 MHz

• V-Scanning Frequency: 60 Hz

• Operation Time Support: 12/7

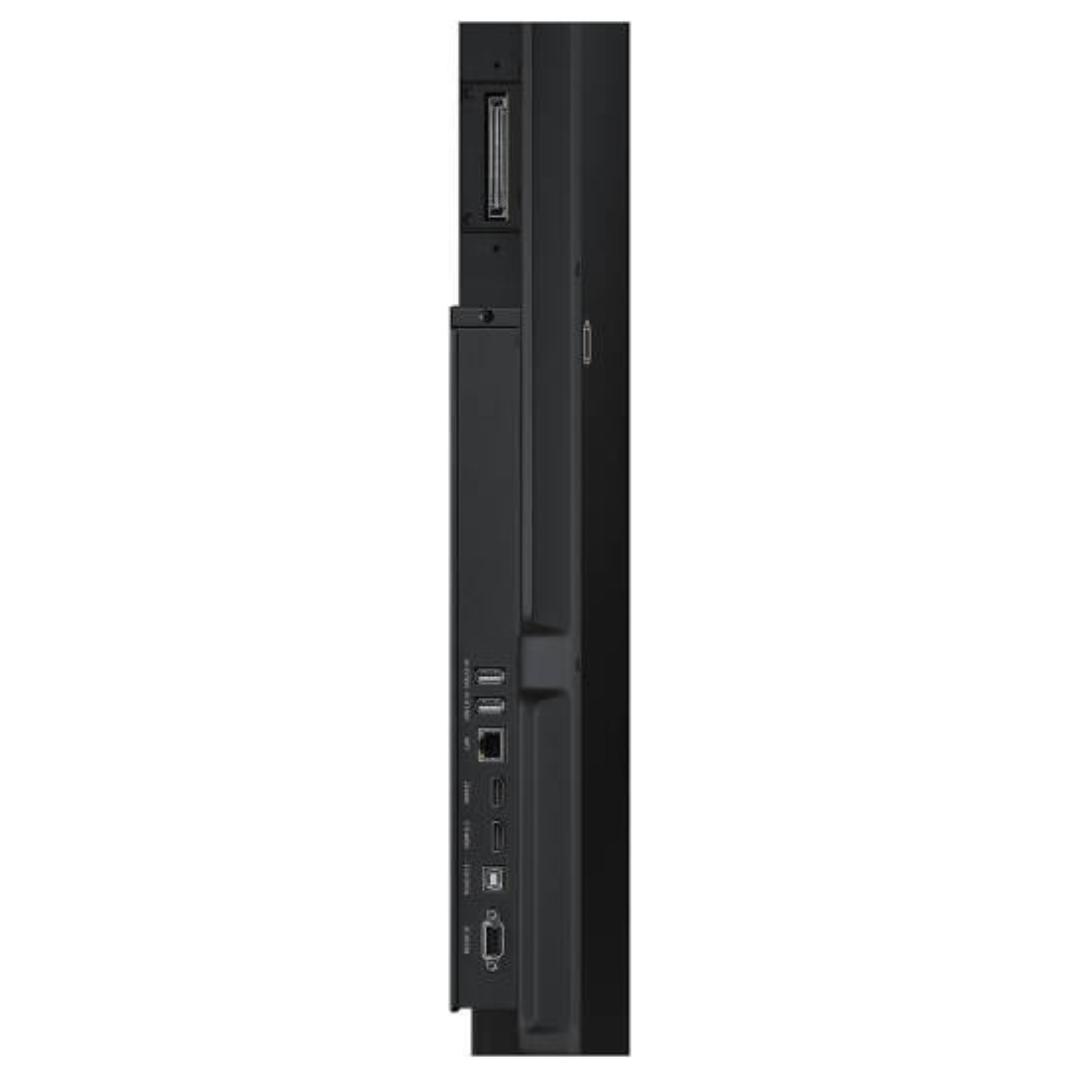

Connectivity

• HDMI In: 2 ports (Version 2.1)

• HDCP Version: 2.1

• USB: 4 ports

• Audio In: Stereo Mini Jack

• Audio Out: Stereo Mini Jack

• Video Out: Yes

• RS232 In: Yes

• RJ45 In: Yes

• Wi-Fi: Wi-Fi 5 (802.11ac)

• Bluetooth: Yes

Power

• Power Supply: AC 100–240 V, 50/60 Hz

• Power Consumption (On): 493 W

• Power Consumption (Sleep): 0.5 W

Dimensions & Weight

• Set Dimensions (W×H×D): 1961.8 × 1170 × 87.7 mm

• Package Dimensions (W×H×D): 2095 × 1265 × 185 mm

• Set Weight: 62.5 kg

• Package Weight: 74.1 kg

Operation Conditions

• Operating Temperature: 0°C–40°C

• Operating Humidity: 10%–80%, non-condensing

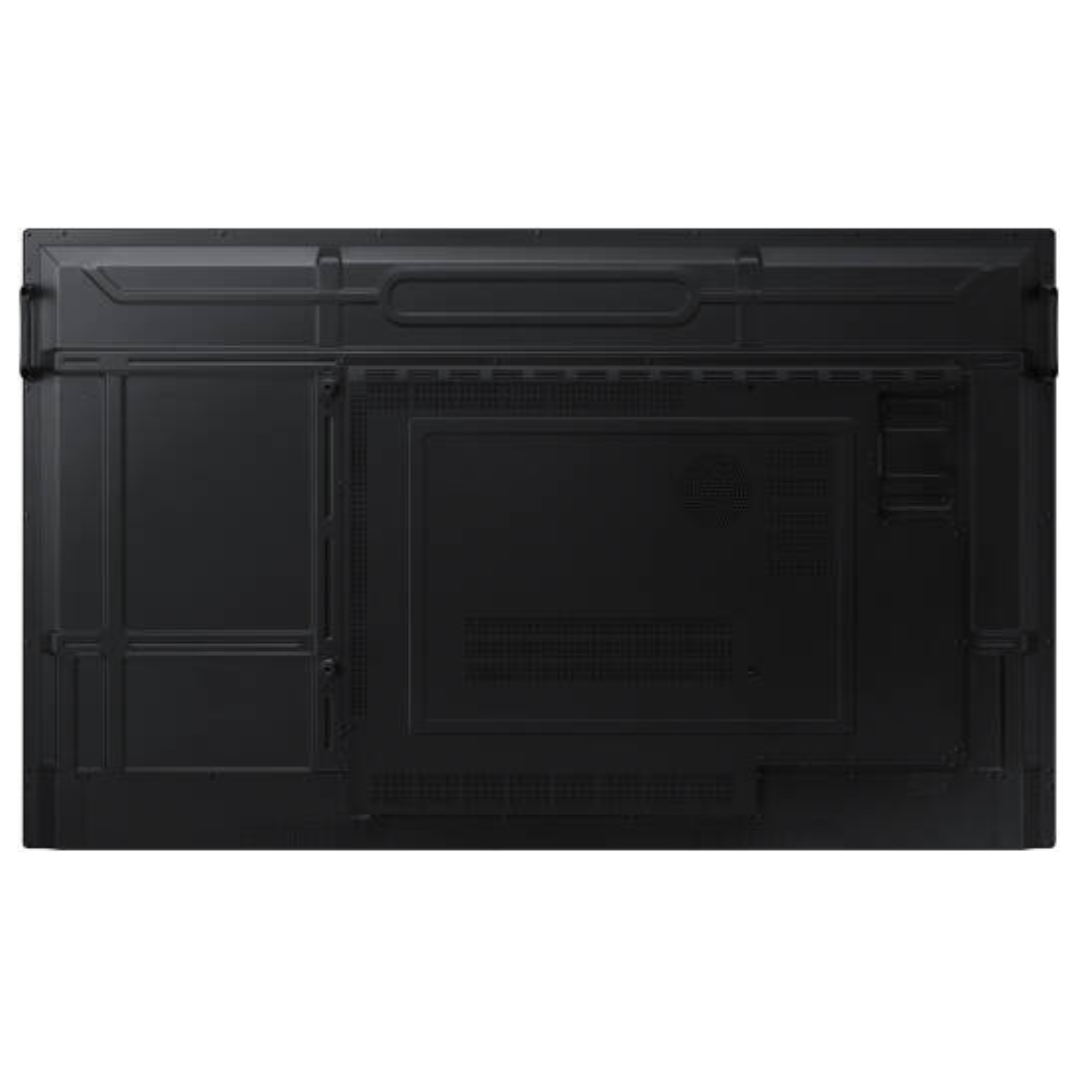

Mechanical

• VESA Mount: 800 × 600 mm

• Bezel Width: 17.2 mm

• Bezel Color: Black

• Frame Material: Aluminium

Optional Features

• Touch Support: Yes (IR technology)

SoC / Software

• OS Version: Android 14

• Flash Memory Size: 64 GB

Certifications & Compliance

• EMC: FCC CFR Title 47, Part 15, Subpart B / EN55032:2015 + A11:2020

• Safety: IEC62368-1 / UL62368-1 / IEC60950-1 / IS13252
