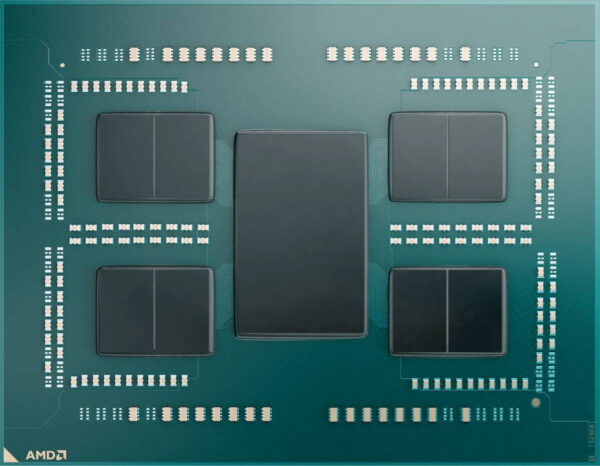

AMD Ryzen Threadripper 7970X Processor

Specification

Core Performance

• Cores / Threads: 32 Cores / 64 Threads

• Base Clock: 4.0 GHz

• Max Boost Clock: Up to 5.3 GHz

• L1 Cache: 2 MB

• L2 Cache: 32 MB

• L3 Cache: 128 MB

• Default TDP: 350W

• Process Technology: TSMC 5nm (CPU) + 6nm (I/O Die)

• Package Die Count: 5

Excellent for:

• 3D rendering

• High-end video production

• Unreal Engine workflows

• Large software builds

• Heavy multitasking systems

Platform & Expansion

• Socket: sTR5

• Chipset Support: TRX50

• PCIe Version: PCIe® 5.0

PCIe Configuration

• Total Lanes: 92

• Usable Lanes: 88

Supports multi-GPU builds and multiple PCIe 5.0 NVMe SSDs.

Memory Subsystem

• Memory Type: DDR5 RDIMM

• Memory Channels: 4-channel

• Max Speed: Up to 5200 MT/s

• ECC Support: Enabled by default

Provides strong bandwidth for creator workloads (though PRO models offer 8-channel).

Overclocking & Boost

• Precision Boost 2

• Precision Boost Overdrive (PBO)

• Curve Optimizer

• AMD EXPO™ Memory Profiles

• Fully unlocked for overclocking

Storage & Connectivity

• USB 3.2 Gen 2: 4 ports

• Native SATA: 2 ports

• NVMe Support: Boot + RAID 0 / 1 / 5 / 10

Graphics

• Integrated Graphics: No

• Discrete GPU Required

Operating System Support

• Windows 11 (64-bit)

• RHEL x86 64-bit

• Ubuntu x86 64-bit
