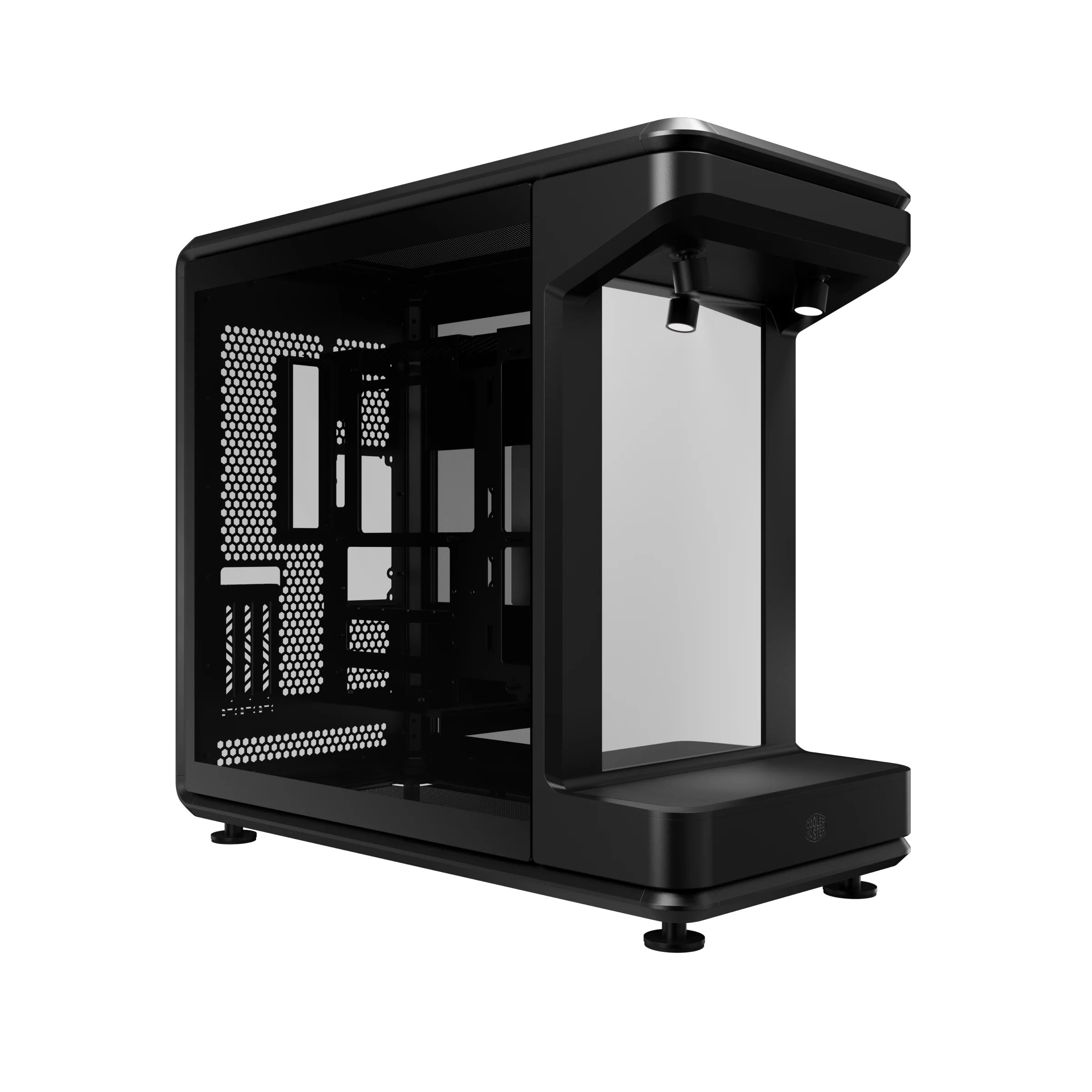

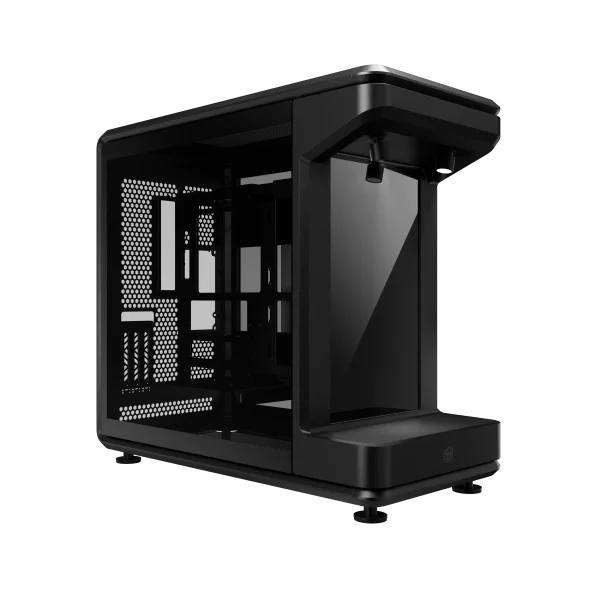

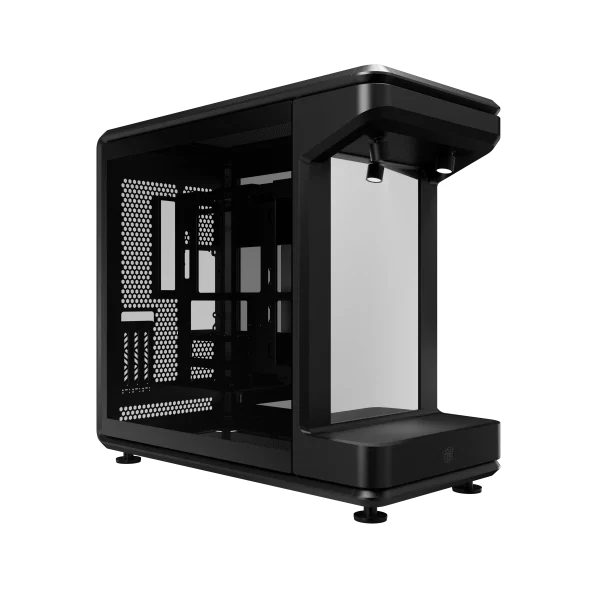

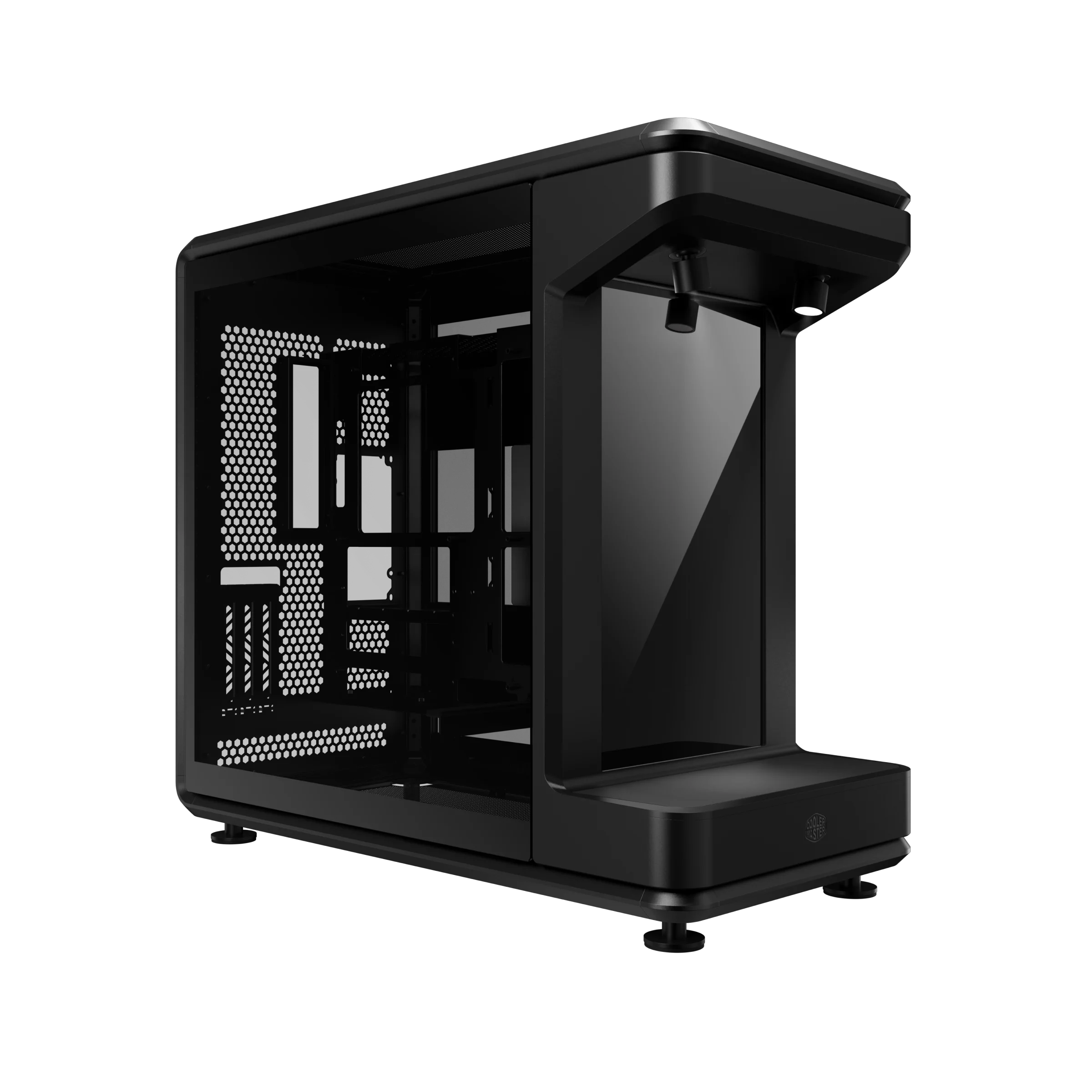

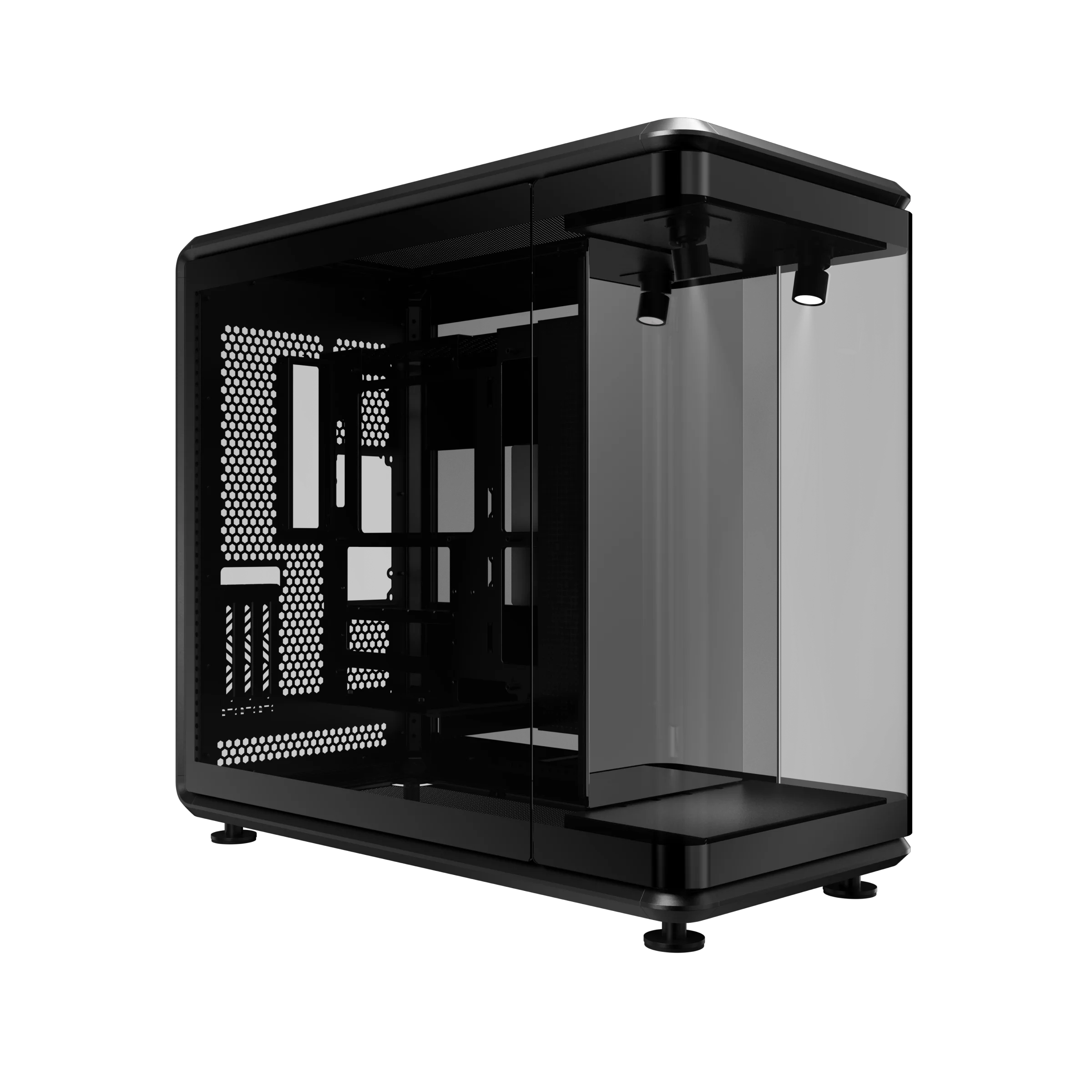

Cooler Master MasterFrame 360 PANORAMA Mid Tower Cabinet – Black, MF360-KINN-S00
Original price was: AED 999.00.AED 949.00Current price is: AED 949.00.
Warranty
| Included Warranty | 1 Year Free Warranty |
|---|
Delivery
| Standard Delivery | One Day Delivery |
|---|
Cooler Master MasterFrame 360 extends the FreeForm 2.0 design philosophy into a visual-first, showcase-ready platform. Featuring Cooler Master’s signature aluminum exo-structure and a new central cable management chamber, it delivers clean builds that put hardware center stage. Available in three distinct models — PANORAMA, STAGE LCD, and STAGE MIRROR — the 360 series offers creators a refined platform to build, express, and be seen.
Massive Cooling Compatibility
Supports fan sizes ranging from 120 mm to 200 mm, with space for up to twelve 120 mm fans—six on the top and six on the bottom. It also supports radiators up to 360 mm, meeting the cooling demands of high-end custom liquid cooling setups.
Wide Component Compatibility
Accommodates up to 430 mm GPUs and 210 mm PSUs built to handle flagship components without compromise. Also compatible with Mini-ITX, Micro-ATX, and ATX motherboards, including BTF (back-connect) layouts within the ATX form factor.
Features 110 mm of cable routing clearance for a clean and clutter-free showcase.
ENCLOSED & OPEN
[ ENCLOSED DESIGN ]
Features a three-sided tempered glass panoramic structure that provides excellent visual transparency, allowing a full view of the internal setup. Compared with the Stage’s open design, its full-cover glass enclosure not only enhances the display effect (for figures, models, or water-cooling systems) but also offers dust and touch protection. It’s a practical design that balances aesthetic presentation and functional protection.
[ OPEN DESIGN ]
Features an open layout that’s ideal for displaying articulated figures that are frequently handled or posed. It’s also perfect for figures with extended parts such as long weapons or wings that go beyond the chassis frame, offering minimal spatial limitations.
MIRROR & LCD
[ MIRROR ]
Perfectly showcases the rear details of the display item, providing a complete 360-degree viewing experience while creating an extended sense of spatial depth.
[ LCD ]
By using a 15.6-inch LCD screen to play themed animations and photos, it creates an immersive and visually cohesive display stage — the perfect choice for those who seek highly personalized and creative presentations.
MasterFrame 360 Stage LCD – LCD Screen User Manual
PCIe 5.0 Riser Cable Included
Includes a premium PCIe 5.0 riser cable that enables vertical GPU mounting providing both next-gen performance and an elevated presentation right out of the box.
Specification – Panorama
- Product Name MASTERFRAME 360 PANORAMA
- Series MASTERFRAME Series
- Color Black
- Model Number MF360-KINN-S00
- Materials – Exterior SGCC
- Materials – Side Panel (Left / Right) TG / TG
- Dimension (L x W x H) – Incl. Protrusions 549 x 291 x 581 mm
- Dimension (L x W x H) – Excl. Protrusions 511 x 291 x 581 mm
- Dimension (L x W x H) – Volume (w/o panel, protrusions and feet) 86 L
- Dimension (L x W x H) – Volume (with panel, protrusions and feet) 93 L
- Hardware support – Motherboard Support Mini-ITX, Micro-ATX, ATX, BTF (ATX)
- Hardware support – Power Supply Support ATX
- Hardware support – PCI Expansion Slots 3.5
- Drive Bay Support – 5.25″ Drive Bay 0
- Drive Bay Support – 3.5″ / 2.5″ Drive Bay (or SSD) HDD (44.45 mm) *1 or SSD *2
- Preinstalled Drive Bay – 3.5″ / 2.5″ Drive Bay (or SSD) HDD (44.45 mm) *1 or SSD *2
- I/O Panel – USB Ports 2x USB 3.2 Gen 1 Type-A 5G; 1x USB 4.0 Gen 2×2 Type-C 20G
- I/O Panel – Audio In / Out 1x 3.5 mm Headset Jack (Audio + Mic)
- Fans Support – Top 6x 120 mm, 2x 140 mm, 2x 180 mm, 2x 200 mm
- Fans Support – Bottom 6x 120 mm, 2x 140 mm, 2x 180 mm, 2x 200 mm
- Radiator Support – Top 120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75 mm)
- Radiator Support – Bottom 120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75 mm)
- Dust Filters – Removable Filters Mesh Only
- Other Electronic Components 1x PCI-e 5.0 Riser Cable / 2x ARGB spotlight
- Maximum Dimensions for Front Collectibles Display (H x W x D) 360 x 220 x 118 mm
- DIY Tank & Pump Support Yes (with right side tank & pump bracket)
- Toolbox Yes
- Clearances – CPU Cooler 145 mm
- Clearances – Power Supply 210 mm
- Clearances – Graphics Card 430 mm
- Cable Routing – Behind MB Tray 110 mm
