Use Extend for BYOD meetings with the Rally Bar family and other Logitech conference cameras by connecting a laptop or mobile device¹ to conduct meetings using the in-room conference camera and display.

ENABLE POWER DELIVERY TO DEVICES

Deliver up to 100W of power to a laptop or mobile device¹ by connecting 100W USB-C Charger or another standard USB-C power adapter to the Table Side (TX) box.

Specification

Dimensions

Display Side Box

• Height: 143 mm
• Width: 143 mm
• Depth: 34.5 mm

Table Side Box

• Height: 143 mm
• Width: 143 mm
• Depth: 34.5 mm

Device Management

• Logitech Sync device management support

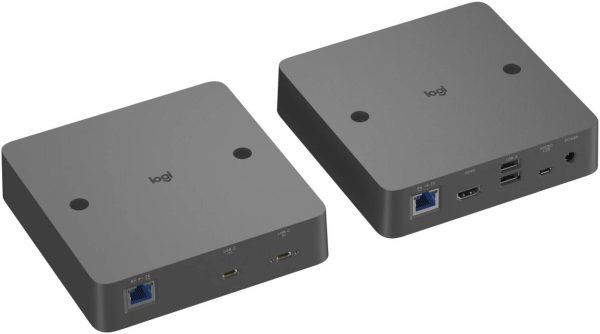

Ports & Interfaces

Display Side (RX)

• HDMI 2.0 with 4K60 4:4:4 support
• 2 × USB 2.0 Type-A ports
• Micro USB management interface
• Logitech Extend power connection
• RJ45 connection to Table Side (TX)

Table Side (TX)

• Secured USB-C connection to user laptop
• USB-C port for optional power supply
• RJ45 connection to Display Side (RX)

Mounting

• VESA mount compatible: 100 × 100 mm
• Two mounting through-holes for wall or table installation
• Mounting hardware included

Power & Cables

Power Supply

• Auto-sensing power supply
• Operating Voltage/Power:
  • 100–240V
  • 48V, 0.5A

Cable Details

• Power Supply Dimensions: 73.5 × 53 × 35 mm
• DC Cable Length: 1.5 m

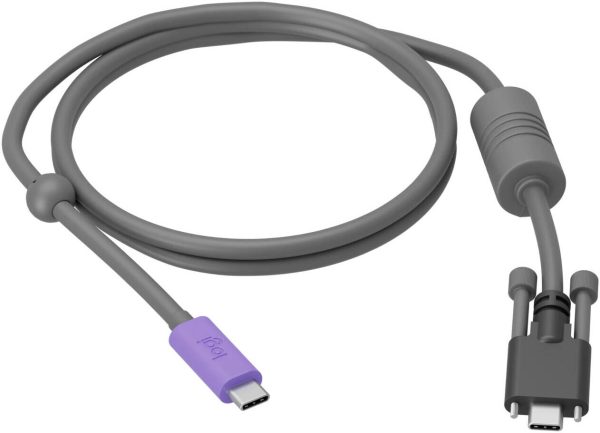

• USB-C to USB-C 3.2 Gen 1 Cable: 1.5 m
• USB-A to Micro USB Cable: 1 m

Environmental Specifications

• Operating Temperature: 0°C to 40°C
• Storage Temperature: -25°C to 70°C
• Humidity Range: 10% to 90%

Security

• File-Based Encryption: NIST SHA-256
• Data Encryption: Public Key Hash
• Firmware Update Security: Digital signature verification

Sustainability

• Minimum 40% post-consumer recycled plastic
  • Excludes printed wiring assembly (PWA), cables, and packaging
• FSC™-certified paper packaging

System Requirements

Required Equipment

Meeting Room Equipment

• Displays with HDMI 1.4 or higher
• AV devices with USB Type-A 2.0 or higher

Laptop Requirements

• USB Type-C port with DisplayPort Alt Mode

Compatibility

Conferencing Cameras

• Rally Bar
• Rally Bar Mini
• Rally Bar Huddle
• MeetUp
• MeetUp 2
• Additional compatible conferencing cameras

Supported Operating Systems

• Windows 10
• Windows 11
• macOS (latest two versions)

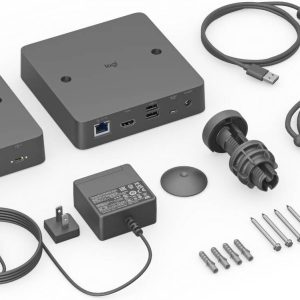

Package Contents

• Display Side (RX) Box
• Table Side (TX) Box
• USB-C to USB-C cable
• Micro USB to USB-A cable
• Power supply
• Mounting hardware
• 25.4 mm grommet adapter
• Magnetic dock
• User documentation
