Monitor room and device health, deploy updates, and modify settings, all from a single cloud-based platform.

CERTIFIED FOR BUSINESS

Leverage the video conferencing platforms and features you already use. Rally Bar is certified for leading video platforms like Microsoft Teams, Zoom, and Google Meet*.

ENSURE BUSINESS CONTINUITY WITH SELECT SERVICE PLAN

Remove barriers to collaboration and ensure conference rooms are ready for the next meeting. Select is a service plan beneficial for all room sizes and deployments. Optimize uptime with expert assistance within one hour, get fast product replacements, and take advantage of premium Sync functionality to proactively resolve issues before they impact your business. When you choose Select, we partner with you to reduce daily management, optimize performance, and help you maximize your investment.

Specification

Dimensions & Weight

• Height: 164 mm
• Width: 910 mm
• Depth: 130.5 mm
• Lens Depth: 28.8 mm
• Weight: 7.08 kg

General Overview

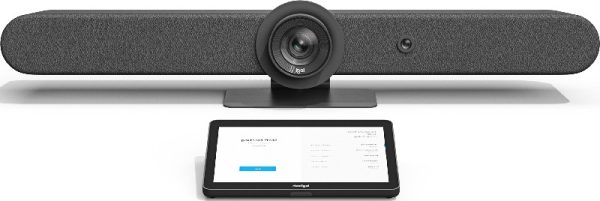

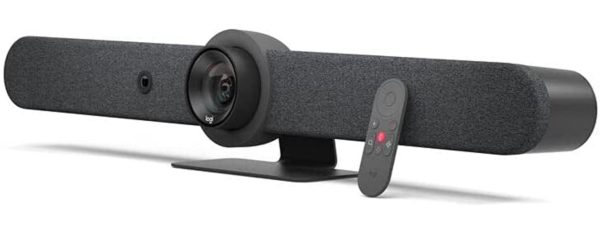

• All-in-one video bar for medium-sized meeting rooms
• Built-in components:
  • PTZ camera
  • 6 beamforming microphones
  • Dual speakers
  • AI Viewfinder
  • Cable management system
• Integrated table stand with anti-vibration speaker design
• Operating system: Logitech CollabOS
• Device management: Logitech Sync
• Supports up to 2 displays (1080p output)

Certifications & Compatibility

• Microsoft Teams Rooms (Android & Windows – medium rooms)
• Compatible with major conferencing platforms (via USB or appliance mode)

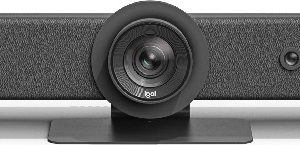

Camera

• Resolution: Up to 4K @ 30fps
• Supported formats: 1440p, 1080p, 900p, 720p, SD
• Zoom: 15x HD (5x optical + 3x digital)
• Pan: ±25° (motorized)
• Tilt: ±15° (motorized)
• Field of View:
  • Diagonal: 90°
  • Horizontal: 82.1°
  • Vertical: 52.2°
• Total coverage: 132.1° (H) × 82.2° (V)

Speakers

• Dual 70 mm drivers
• Rated power: 8W
• Output:
  • 92 dB SPL @1W
  • 99 dB SPL @8W
• Sampling rate: 48 kHz
• Low distortion (<2% at 1kHz)

Microphones

• 6 digital MEMS beamforming microphones
• Pickup range: up to 7 meters
• Frequency response: 90 Hz – 16 kHz
• Sensitivity: > -36 dBFS
• 5 adaptive acoustic beams
• Audio processing:
  • Acoustic Echo Cancellation (AEC)
  • Voice Activity Detection (VAD)
  • AI noise suppression

Expandability

• Supports:
  • Up to 4 Rally Mic Pods
  • Up to 2 Mic Pod Hubs

RightSense™ Technologies

• RightLight™: Natural skin tones and image optimization
• RightSight™: Auto-framing + AI Viewfinder for full-room visibility
• RightSound™: Voice enhancement and noise suppression
• Grid View: Frames all participants for hybrid meetings

Interfaces & Connectivity

• HDMI Out: 2 (up to 1080p)
• HDMI In: 1
• USB Ports:
  • 3 × USB-A
  • 1 × USB-C
• Network: Gigabit Ethernet
• Wi-Fi: 802.11 a/b/g/n/ac
• External Mic Input (proprietary)
• Remote: Bluetooth Low Energy

Power & Cables

• Power: 100–240V, 19V, 4.74A
• Power adapter size: 127 × 51 × 30 mm
• Included cables:
  • HDMI (2 m)
  • USB-A to USB-C (2.2 m)
  • DC cable (1.5 m)
  • AC cable (1 m)

Environmental

• Operating temp: 0°C to 40°C
• Storage: -40°C to 70°C
• Humidity: 10% – 95%
• Power consumption:
  • 57 BTU/hr (idle)
  • 64 BTU/hr (in meeting)

Security

• Full disk encryption (AES-128)
• PKI-based data encryption
• Device attestation
• API-based authentication
• Hardware-level key protection (Arm TrustZone)

Accessories

• Mounts: Wall mount, TV mount
• Audio:
  • Rally Mic Pod
  • Mic Pod Hub
  • Mic Pod Mount
  • Extension cables
• Connectivity: Logitech Strong USB (10m / 25m / 45m)
• Controllers: Logitech Tap, Tap IP
