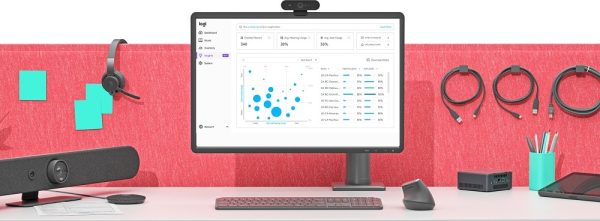

Monitor room and device health, deploy updates, and modify settings, all from a single cloud-based platform.

CERTIFIED FOR BUSINESS

Leverage the video conferencing platforms and features you already use. Rally Bar Mini is certified for leading video platforms like Microsoft Teams, Zoom, and Google Meet*.

ENSURE BUSINESS CONTINUITY WITH SELECT SERVICE PLAN

Remove barriers to collaboration and ensure conference rooms are ready for the next meeting. Select is a service plan beneficial for all room sizes and deployments. Optimize uptime with expert assistance within one hour, get fast product replacements, and take advantage of premium Sync functionality to proactively resolve issues before they impact your business. When you choose Select, we partner with you to reduce daily management, optimize performance, and help you maximize your investment.

Specification

Dimensions & Weight

• Height: 91.4 mm
• Width: 719 mm
• Depth: 101 mm
• Lens Depth: 18.5 mm
• Weight: 4.03 kg

General Overview

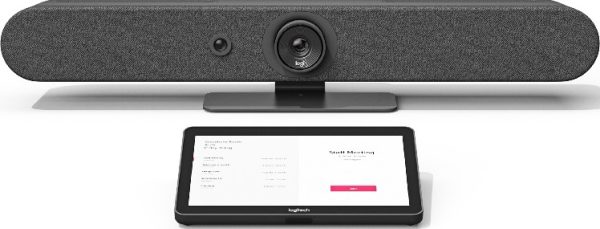

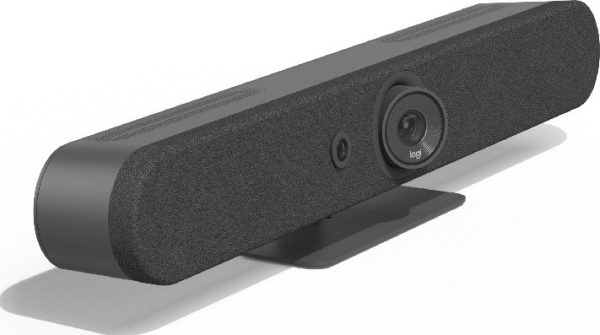

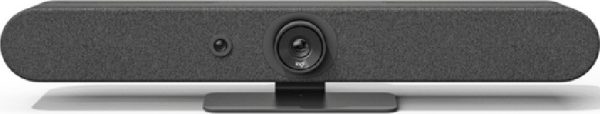

• All-in-one video bar designed for small meeting rooms
• Built-in components:
  • PTZ camera
  • 6 beamforming microphones
  • 3 speakers (woofer + 2 midrange)
  • AI Viewfinder
  • Cable management system
• Integrated table stand with anti-vibration design
• Platform: Logitech CollabOS
• Device management: Logitech Sync
• Supports dual displays (up to 1080p)

Certifications & Compatibility

• Microsoft Teams Rooms (Android & Windows – small rooms)
• Compatible with major video conferencing platforms

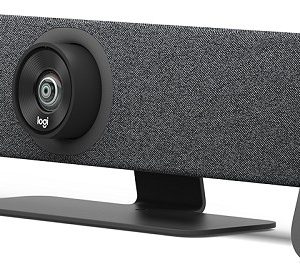

Camera

• Resolution: Up to 4K @ 30fps
• Supported formats: 1440p, 1080p, 900p, 720p, SD
• Zoom: 4x HD digital zoom
• Pan: ±25° (motorized)
• Tilt: ±15° (motorized)
• Field of View:
  • Diagonal: 120° (ultra-wide)
  • Horizontal: 113°
  • Vertical: 80.7°
• Total coverage: 163° (H) × 110° (V)

Audio System

Woofer

• 70 mm driver
• Output:
  • 92 dB SPL @1W
  • 99 dB SPL @8W
• Rated power: 8W

Midrange Speakers

• 2 × 43 mm drivers
• Output: 84 dB SPL @1W/1m
• Rated power: 4W

Audio Features

• 48 kHz sampling rate
• Low distortion (<2%)
• Anti-vibration suspension system

Microphones

• 6 digital MEMS beamforming microphones
• Pickup range: up to 7 meters
• Frequency response: 90 Hz – 16 kHz
• Sensitivity: > -36 dBFS
• 5 adaptive acoustic beams

Audio Processing

• Acoustic Echo Cancellation (AEC)
• Voice Activity Detection (VAD)
• AI-based noise suppression

Expandability

• Supports:
  • Up to 3 Rally Mic Pods
  • Up to 2 Mic Pod Hubs

RightSense™ Technologies

• RightLight™: Natural color and lighting optimization
• RightSight™: Auto-framing + AI Viewfinder
• RightSound™: Voice enhancement & noise suppression
• Grid View: Frames all participants for hybrid meetings

Interfaces & Connectivity

• HDMI Out: 2 (up to 1080p)
• HDMI In: 1
• USB Ports:
  • 3 × USB-A
  • 1 × USB-C
• Network: Gigabit Ethernet
• Wi-Fi: 802.11 a/b/g/n/ac
• External Mic Input (proprietary)
• Remote: Bluetooth Low Energy

Power & Cables

• Power: 100–240V, 19V, 4.74A
• Included cables:
  • HDMI (2 m)
  • USB-A to USB-C (2.2 m)
  • DC cable (1.5 m)
  • AC cable (1 m)

Environmental

• Operating: 0°C to 40°C
• Storage: -40°C to 70°C
• Humidity: 10% – 95%
• Power consumption:
  • 57 BTU/hr (idle)
  • 64 BTU/hr (in meeting)

Security

• AES-128 full disk encryption
• PKI-based secure data encryption
• Device attestation
• API authentication
• Hardware-level protection (Arm TrustZone)

Accessories

• Mounts: Wall mount, TV mount
• Audio:
  • Rally Mic Pod
  • Mic Pod Hub
  • Mic Pod Mount
  • Extension cables
• Connectivity: Logitech Strong USB (10m / 25m / 45m)
• Controllers: Logitech Tap, Tap IP
