Logitech Scribe Whiteboard camera for video conferencing rooms, White, 960-001332

Specification

Dimensions

Camera

• Height: 149 mm
• Width: 119 mm
• Depth: 573 mm
• Weight: 1.1 kg

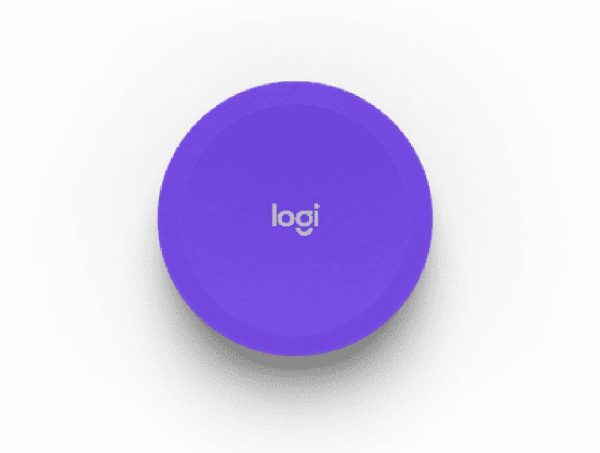

Share Button

• Height: 12.7 mm
• Diameter: 71.8 mm
• Weight: 108 g

Power Injector

• Height: 91 mm
• Width: 60.2 mm
• Depth: 36.3 mm

Dongle Transceiver

• Height: 22.5 mm
• Width: 31 mm
• Depth: 83.7 mm
• Cable Length: 500 mm

Included Cabling

• Quantity: 2 Cables
• Length: 5 m each

Technical Specifications

Camera

Video Performance

• Output Resolution: 1080p
• Frame Rate: 15 fps
• Field of View (FoV): 148°

AI Features

• Built-in AI processing
• Broadcasts AI-enhanced whiteboard image streams into video meetings
• Optimized for automatic whiteboard content enhancement and participant transparency effects

Share Button

Power

• 2 × CR2032 batteries

Installation

• Adhesive-backed mounting

Functionality

• One-touch content sharing
• Share button functionality may vary by conferencing platform

Whiteboard Support

Maximum Whiteboard Size

• Height: 1.2 m
• Width: 1.8 m

Interfaces

Camera

• Category cable port

Share Button

• Bluetooth® Low Energy (BLE)

Power and Cabling

Power Supply

• 100–240 V auto-switching power supply
• International adapter set included

Supported Customer-Supplied Cable

• Cat5e SF/UTP AWG26 or higher
• Maximum total cable length: 35 m

Security

Data Protection

• Full Disk Encryption
• AES-128 encryption standard

Device Management

Management Platform

• Logitech Sync

Certifications and Compatibility

Certified Room Solutions

• Microsoft Teams Rooms on Windows
• Google Meet Rooms
• Zoom Rooms (as a whiteboard content camera)

General Compatibility

• Compatible with virtually any video conferencing application that supports USB-connected cameras

Environmental Specifications

Operating Environment

• Temperature: 0°C to 40°C
• Humidity: 10%–95%

Storage Environment

• Temperature: -40°C to 70°C

Package Contents

Included Components

• Scribe Camera
• Share Button
• Dongle Transceiver
• 100–240 V Power Supply with International Adapter Set
• 2 × 5 m Cat5e Cables
• Camera Installation Kit
• Documentation
